SD.505.20.00.C Lightweight heavy-duty slewing bearings

Brand DZE
Product origin Luoyang China
Delivery time 15-30 days
Supply capacity 2000sets/mouth

DZE Products and Servies.pdf

SD.505.20.00.C Lightweight heavy-duty slewing bearings,It is a light series four-point contact ball bearing and is the same type as VLU200414; 230.20.0400.503; 23-0411-01.Customized bearing manufacturers can customize suitable precision bearings according to your needs

Our Advantage

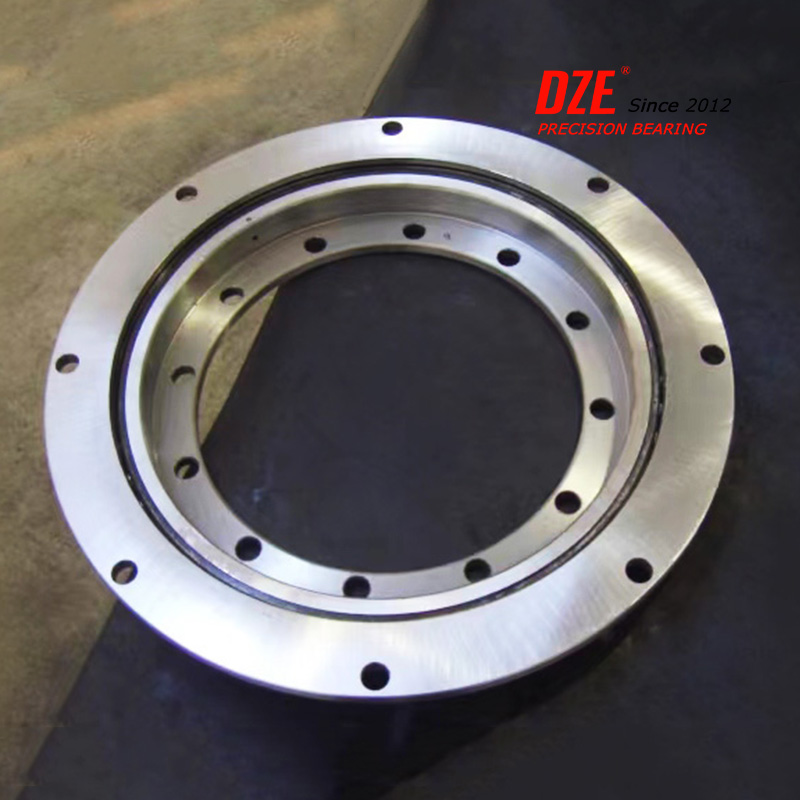

SD.505.20.00.C Flange structure bearings are available with drawings and pricing. DZE Bearings specializes in manufacturing these Four point contact ball bearings.

Dimensions: 518*304*56"

Material: 42CrMo, quenched and tempered, hardness HB229-269

Brand: DZE Bearings

Precision: P5/P4

Applications: Hoisting and transportation machinery, mining machinery, construction machinery, and port machinery

SD.505.20.00.C Bearing Features:Belong to a VLU200 series bearings-VLU200 series bearings

1. Precision: Available in P5, P4, and P2 grades.

2. Rigidity: Factory preloaded, capable of simultaneously withstanding radial, axial, and overturning moment loads. DZE bearings can replace multiple bearing combinations.DZE is China bearing factory.

3. Load: Linear contact and a large number of rollers provide extremely high load capacity.

4. Space: Miniaturized cross-sectional design saves installation space, resulting in compact size and light weight.

5. Movement: Smooth rotation and stable friction torque.

6. Installation: Easy to install and adjust.

7. Model: Various China bearing types and sizes available.

8. Design: Custom design and fabrication available.

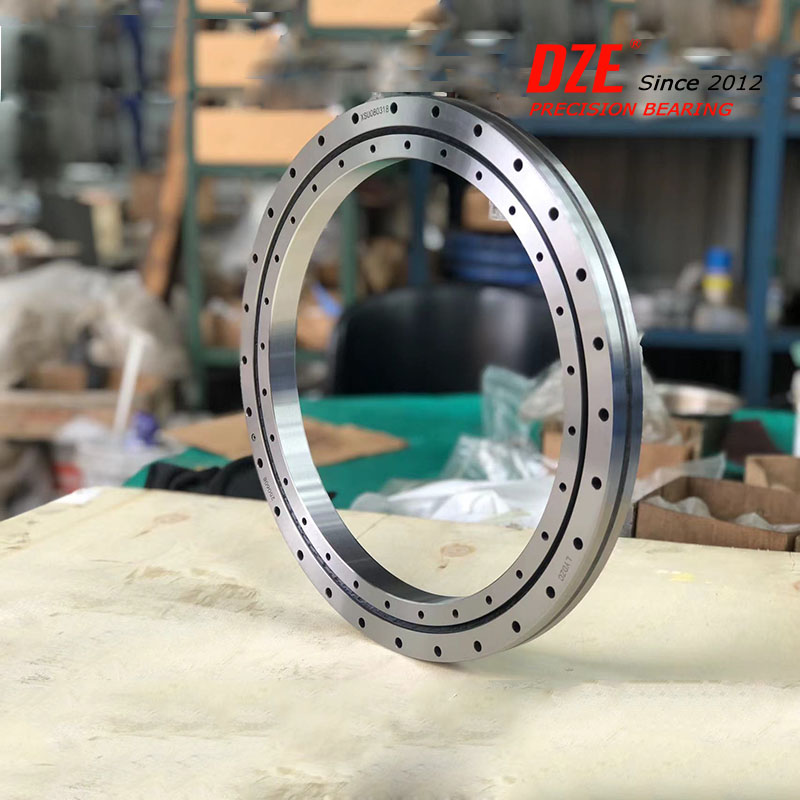

Standard Model

VLU200 series bearings

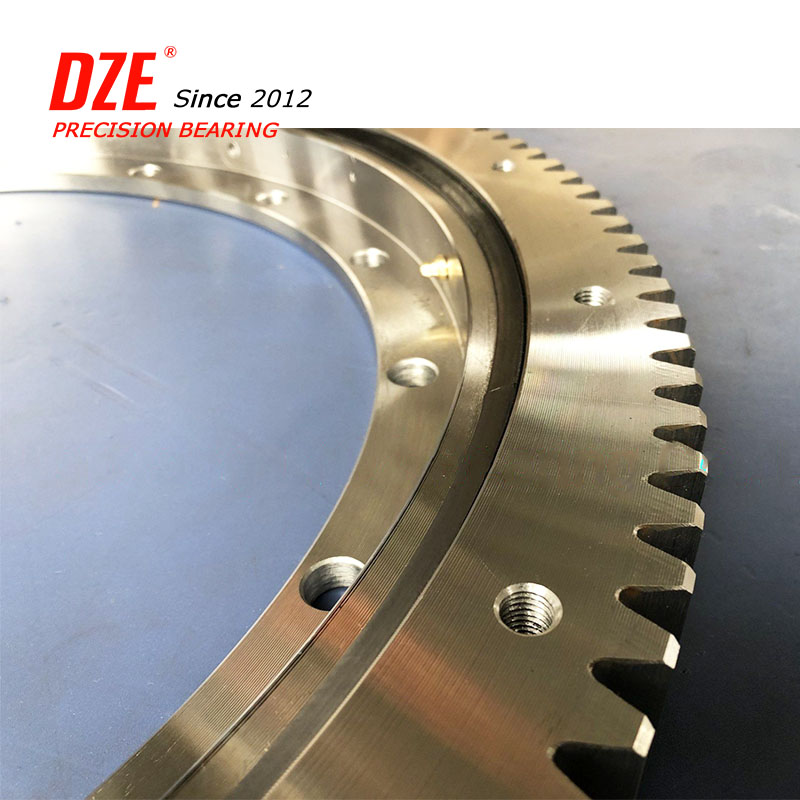

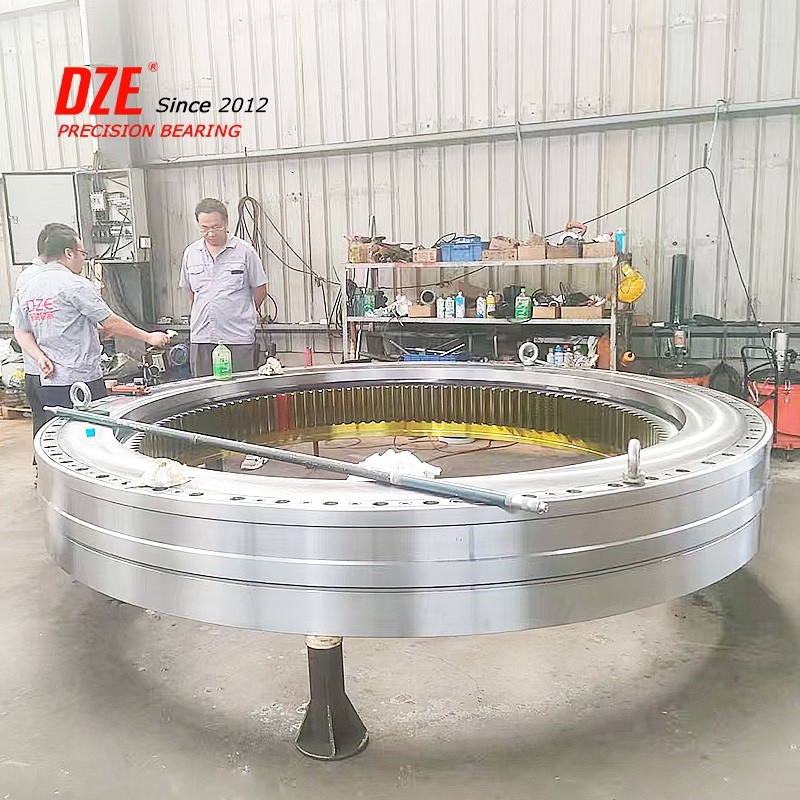

Internal Teeth

Rigorous Careful

DZE Slewing ring bearing SD.505.20.00.C. Highlights: High precision, down to 0.001mm; Wide range of sizes, from inner diameters of 10mm to 1000mm; Excellent rigidity, one set of bearings can replace multiple sets; In stock, timely delivery; Free consultation and selection; Various structural types suitable for different operating conditions; One-year warranty, free.

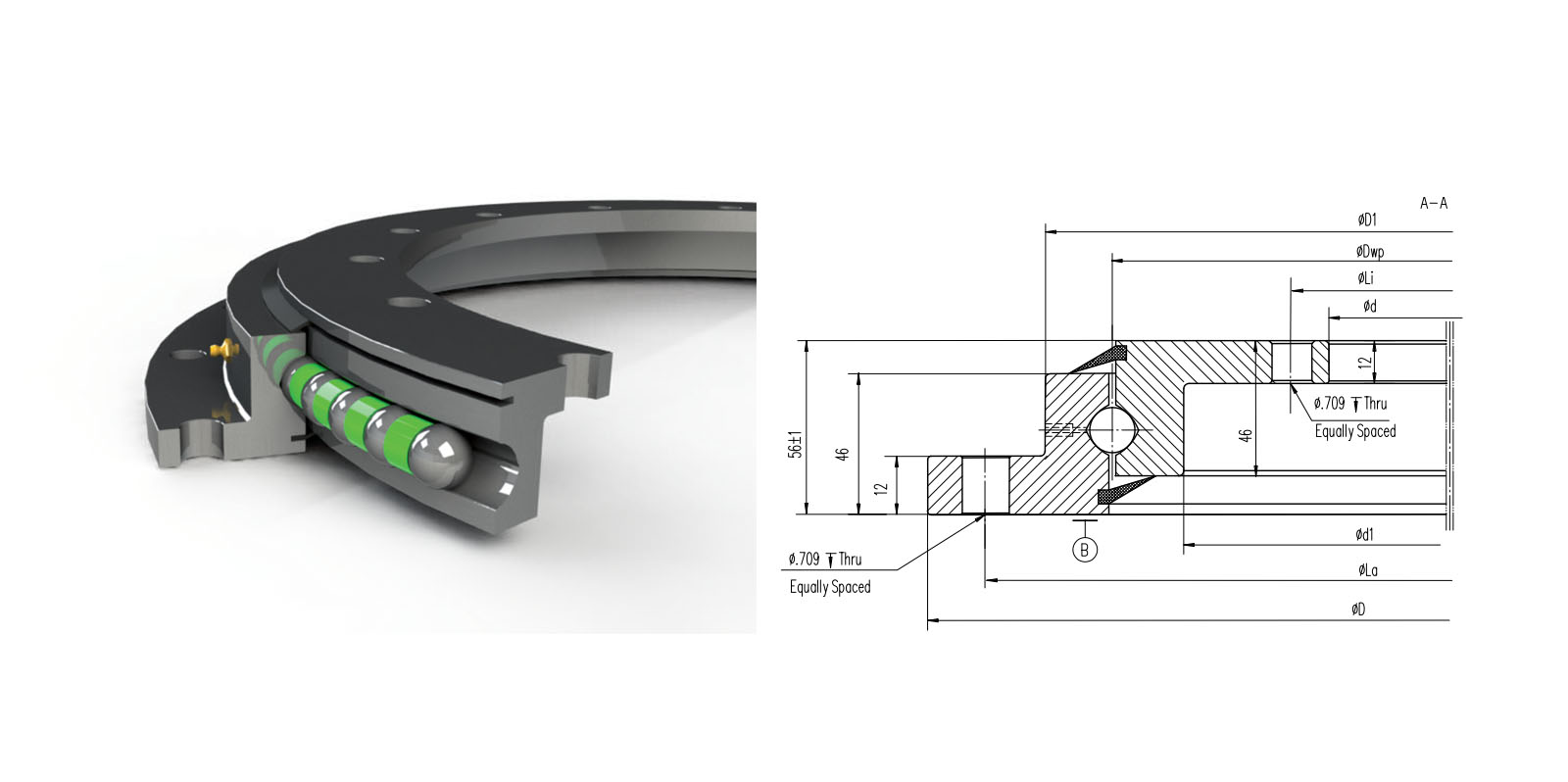

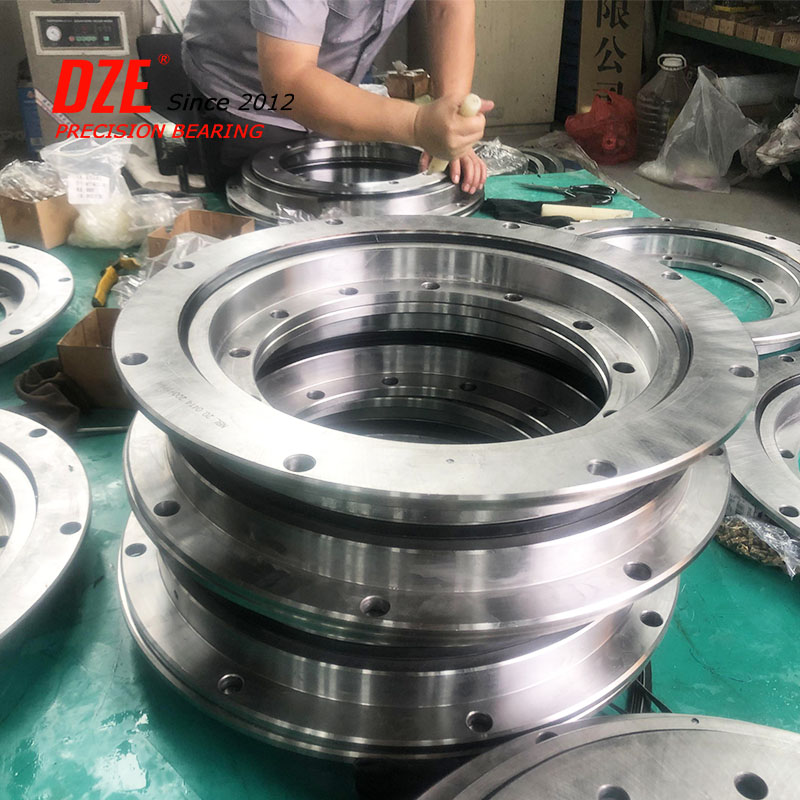

Flange structure bearings Specification

Four point contact ball bearings

Model			Dimensions(mm)			Mounting Hole Size						Structure dimensions						Basic load Ratings	Weight
Model			Dimensions(mm)			Mounting Hole Size						Structure dimensions						Basic load Ratings	Weight
Designation			Dimensions			Mounting Hole Size						Structure dimensions						Coa(kN)	kg
INA	Rothe Erde	TG	D	d	H	D1	D2	n1	n2	φ1	φ2	D4	d2	H1	H2	d1	D3	Coa(kN)	kg
	230.20.0400.013		518	304	56	490	332	8	12	18	18			45.5	45.5	415.5	412.5	250	23.4
	230.20.0400.503		518	304	56	490	332	16	24	18	18			45.5	45.5	415.5	412.5	250	23
		SD.505.20.00.C	518	304	56	490	332	8	12	18	φ18	453	375	46	46	415.5	412.5	500	24.3
VLU200414ZT			518	304	56	490	332	8	12	φ18	φ18	458.5	369.5	47.5	47.5	415.5	412.5	600	26.5
VLU200414			518	304	56	490	332	8	12	18	18			47.5	47.5	415.5	412.5	295	23.5
	230.21.0475.013		517	305	56	490	332	8	12	18	18			45.5	45.5	415.5	412.5	250	23.4
	230.20.0500.013		648	434	56	620	462	10	14	18	18			45.5	45.5	545.5	542.5	330	31
	230.20.0500.503		648	434	56	620	462	20	28	18	18			45.5	45.5	545.5	542.5	330	30.4
		SD.650.20.00.C	648	434	56	620	462	10	14	18	φ18	583	505	46	46	545.5	542.5	660	32
	230.20.0500.013		648	434	56	620	462	20	28	φ18	φ18	583	505	45.5	45.5	545.5	542.5	660	30.4
VLU200544ZT			648	434	56	620	462	10	14	φ18	φ18	588.5	499.5	47.5	47.5	545.5	542.5	800	35.4
VLU200544			648	434	56	620	462	10	14	18	18			47.5	47.5	545.5	542.5	385	31
		SD.650.20.00.C	648	434	56	620	462	10	14	φ18	φ18	583	505	46	46	545.5	542.5	400	31
	230.21.0575.013		647	435	56	620	462	10	14	18	18			45.5	45.5	545.5	542.5	330	31
	230.20.0600.013		748	534	56	720	562	12	16	18	18			45.5	45.5	645.5	642.5	390	36.4
	230.20.0600.503		748	534	56	720	562	24	32	18	18			45.5	45.5	645.5	642.5	390	35.8
		SD.750.20.00.C	748	534	56	720	562	12	16	18	φ18	683	605	46	46	645.5	642.5	780	38
VLU200644ZT			748	534	56	720	562	12	16	φ18	φ18	685	602	47.5	47.5	645.5	642.5	780	38
VLU200644ZT			748	534	56	720	562	12	16	φ18	φ18	688.5	599.5	47.5	47.5	645.5	642.5	900	42
VLU200644			748	534	56	720	562	12	16	18	18			47.5	47.5	645.5	642.5	455	36.5
		SD.750.20.00.C	748	534	56	720	562	12	16	φ18	φ18	683	605	46	46	645.5	642.5	460	36.5
	230.21.0675.013		747	535	56	720	562	12	16	18	18			45.5	45.5	645.5	642.5	390	36.4
		SD.750.20.00.C	746	536	56	720	562	12	16	φ18	φ18	683	605	46	46	645.5	642.5	780	38
	230.20.0700.013		848	634	56	820	662	12	16	18	18			45.5	45.5	745.5	742.5	450	42.8
	230.20.0700.503		848	634	56	820	662	24	32	18	18			45.5	45.5	745.5	742.5	450	42.2
VLU200744ZT			848	634	56	820	662	12	16	φ18	φ18	788.5	699.5	47.5	47.5	745.5	742.5	1050	45
VLU200744			848	634	56	820	662	12	16	18	18			47.5	47.5	745.5	742.5	530	42.5
	230.21.0775.013		847	635	56	820	662	12	16	18	18			45.5	45.5	745.5	742.5	450	42.8
	230.20.0800.013		948	734	56	920	762	14	18	18	18			45.5	45.5	845.5	842.5	510	47.8
	230.20.0800.503		948	734	56	920	762	28	36	18	18			45.5	45.5	845.5	842.5	510	47.1
		SD.950.20.00.C	948	734	56	920	762	14	18	18	φ18	883	805	46	46	845.5	842.5	1030	50
VLU200844ZT			948	734	56	920	762	14	18	φ18	φ18	888.5	799.5	47.5	47.5	845.5	842.5	1200	53.8
VLU200844			948	734	56	920	762	14	18	18	18			47.5	47.5	845.5	842.5	600	48
	230.21.0875.013		947	735	56	920	762	14	18	18	18			45.5	45.5	845.5	842.5	510	47.8
		SD.950.20.00.C	946	736	56	920	762	14	18	φ18	φ18	883	805	46	46	845.5	842.5	1030	50
	280.30.0900.013		1100	805	90	1060	845	30	30	22	22			71	71	953.5	956.5	1750	131
VLU 300955			1100	805	90	1060	845	30	30	22	22			71	71	953	957	2550	135
		SD.1100.32.00.C	1100	805	90	1060	845	30	30	φ22	φ22	1017	893	71	71	955	955	2250	131
	280.30.0975.013		1098	807	90	1060	845	30	30	22	22			71	71	953.5	956.5	1750	131
	230.20.0900.013		1048	834	56	1020	862	16	20	18	18			45.5	45.5	945.5	942.5	570	53.1
	230.20.0900.503		1048	834	56	1020	862	32	40	18	18			45.5	45.5	945.5	942.5	570	52.3
		SD.1050.20.00.C	1048	834	56	1020	862	16	20	18	φ18	983	905	46	46	945.5	942.5	1440	55.6
VLU200944ZT			1048	834	56	1020	862	16	20	φ18	φ18	988.5	899.5	47.5	47.5	945.5	942.5	1350	61
VLU200944			1048	834	56	1020	862	16	20	18	18			47.5	47.5	945.5	942.5	670	54
	230.21.0975.013		1047	835	56	1020	862	16	20	18	18			45.5	45.5	945.5	942.5	570	53.1
	280.30.1000.013		1200	905	90	1160	945	30	30	22	22			71	71	1053.5	1056.5	1840	145
VLU301055			1200	905	90	1160	945	30	30	22	22			71	71	1053	1057	2800	149
		SD.1200.32.00.C	1200	905	90	1160	945	30	30	φ22	φ22	1117	993	71	71	1055	1055	2500	145
	280.30.1075.013		1198	907	90	1160	945	30	30	22	22			71	71	1053.5	1056.5	1840	145
	230.20.1000.013		1198	984	56	1170	1012	16	20	18	18			45.5	45.5	1095.5	1092.5	665	61.9
	230.20.1000.503		1198	984	56	1170	1012	32	40	18	18			45.5	45.5	1095.5	1092.5	665	61.1
		SD.1200.20.00.C	1198	984	56	1170	1012	16	20	18	φ18	1133	1055	46	46	1095.5	1092.5	1700	62.8
VLU 201094			1198	984	56	1170	1012	16	20	18	18			47.5	47.5	1095.5	1092.5	770	62.5
		SD.1200.20.00.C	1198	984	56	1170	1012	16	20	φ18	φ18	1133	1055	46	46	1095.5	1092.5	780	62
	230.21.1075.013		1197	985	56	1170	1012	16	20	18	18			45.5	45.5	1095.5	1092.5	665	61.9
	280.30.1100.013		1300	1005	90	1260	1045	36	36	22	22			71	71	1153.5	1156.5	1900	159
VLU 301155			1300	1005	90	1260	1045	36	36	22	22			71	71	1153	1157	3100	164
		SD.1300.32.00.C	1300	1005	90	1260	1045	36	36	φ22	φ22	1217	1093	71	71	1155	1155	2700	159
	280.30.1175.013		1298	1007	90	1260	1045	36	36	22	22			71	71	1153.5	1156.5	1900	159
	280.30.1200.013		1400	1105	90	1360	1145	42	42	22	22			71	71	1253.5	1256.5	1950	172
VLU 301255			1400	1105	90	1360	1145	42	42	22	22			71	71	1253	1257	3350	177
		SD.1400.32.00.C	1400	1105	90	1360	1145	42	42	φ22	φ22	1317	1193	71	71	1255	1255	3000	172
	280.30.1275.013		1398	1107	90	1360	1145	42	42	22	22			71	71	1253.5	1256.5	1950	172
	280.30.1300.013		1500	1205	90	1460	1245	42	42	22	22			71	71	1353.5	1356.5	2000	186
VLU 301355			1500	1205	90	1460	1245	42	42	22	22			71	71	1353	1357	3600	191
		SD.1500.32.00.C	1500	1205	90	1460	1245	42	42	φ22	φ22	1417	1293	71	71	1355	1355	3260	186
	280.30.1375.013		1498	1207	90	1460	1245	42	42	22	22			71	71	1353.5	1356.5	2000	186
	280.30.1400.013		1600	1305	90	1560	1345	48	48	22	22			71	71	1453.5	1456.5	2050	200
	280.30.1400.013		1600	1305	90	1560	1345	48	48	φ22	φ22	1517	1393	71	71	1456.5	1453.5	4100	200
VLU 301455			1600	1305	90	1560	1345	48	48	22	22			71	71	1453	1457	4000	206
		SD.1600.32.00.C	1600	1305	90	1560	1345	48	48	φ22	φ22	1517	1393	71	71	1455	1455	3440	200
	280.30.1475.013		1598	1307	90	1560	1345	48	48	22	22			71	71	1453.5	1456.5	2050	200

How to Install Four point contact ball bearings-Flange structure bearings

1. Before installation, ensure the mounting surface is level and free of debris.

1. Check and remove burrs.

2. Clean the surface, bolt holes, and lubrication holes.

3. Ensure the surface is dry.

4. Ensure the connection surface is level.

5. Shaft and hole dimensions; end face flatness and parallelism; radial and axial perpendicularity.

6. If the surface is uneven or has raised recesses, these must be corrected before installing the bearing.

2. When installing the bolts, apply preload symmetrically at 180 degrees to avoid uneven preload that could cause bearing misalignment. Apply preload in at least three steps; avoid applying preload all at once to ensure that every bolt receives the preload evenly.

3. After installation, be sure to check the runout with a dial indicator before operation. If there is a significant difference between high and low points, recheck the gap between the surface and the mating surface.

4. Before installing a new bearing, ensure it is re-greased to ensure sufficient lubrication. Re-grease after 200 hours of continuous operation or testing during the first MTE-210 (operating state). Check and re-grease every 100 hours thereafter. This significantly increases the bearing's service life.

5. Analysis of the cause of this bearing failure: Long-term use without maintenance caused severe heating between the raceways and rolling elements. Because our bearings are subject to high loads, both in terms of speed and load, long-term lack of maintenance and unchecked lubrication conditions caused internal heating, leading to premature bearing failure.

6. Grease: EP2 lithium-based grease. Bolts: Minimum 10.9 high-strength.
