The toothless double row slewing ring is equipped with mounting holes, lubricating oil holes, and sealing devices, which can meet the different needs of various hosts working under different working conditions. Double roller slewing ring bearing has the characteristics of compact structure, easy to guide rotation, easy installation, and easy maintenance.Also included double row roller bearing,top roller bearing.
Double Row Untoothed Ball Bearing-untoothed size parameter
De | di | Ht | weight（KG） | DZE Model | kaydon | * |
517 | 311 | 114 | 95 | LYDZ 020-517 | 16282001 | STD |
755.5 | 473 | 178 | 293 | LYDZ 020-755 | 16283001 | STD |
1052 | 768.5 | 190 | 482 | LYDZ 020-1052 | 16284001 | STD |
1428.5 | 1111 | 172 | 690 | LYDZ 020-1428 | 16015001 | |
1924 | 1517.5 | 222 | 1607 | LYDZ 020-1924 | 16285001 | STD |
3327 | 2896 | 205 | 3155 | LYDZ 020-3327 | 16286001 | STD |
4318 | 3810 | 250 | 4200 | LYDZ 020-4318 | 13004001 | STD |
About DZE Bearing
DZE Bearing is China bearing manufacturers . established in 2012 is a precision bearing manufacturer, factory located in Luoyang, China, the thousand-year-old imperial capital. Luoyang is the capital of bearings and the city of peonies, where one hundred and three emperors made their capital.
We produce:
€: slewing bearings-ball-roller.
€: high-precision cross roller bearings-bearing steel-stainless steel.
€: YRT turntable bearings.

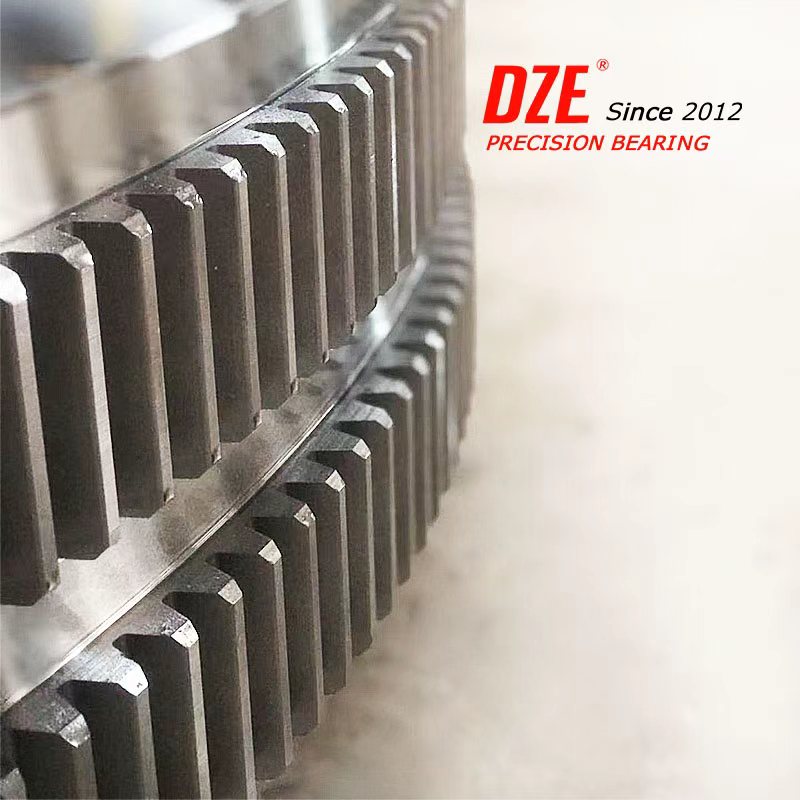

€: matching gears.
DZE is a comprehensive manufacturer of various sizes with modern production equipment, including:
€: precision grinder; maximum outer diameter 2300mm;
€: CNC lathe; maximum outer diameter 6700mm;
€: heat treatment equipment: surface quenching, integral quenching, vacuum quenching equipment;

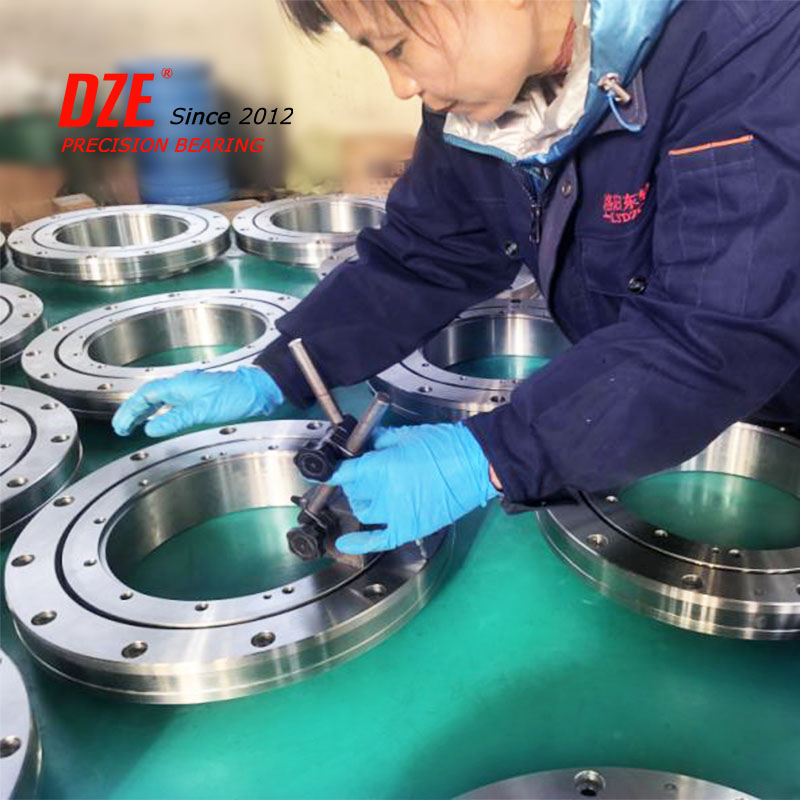

€: CNC drilling machine, various precision testing instruments.
Customization-16282001 Bearings and 16283001
DZE provides customized services for any bearing size, including slewing bearings, Cross Roller Bearing ,toothless structures, external gear structures, internal gear structures. Single row ball, single row roller, double row ball, double row roller, precision gears, spur gears, helical gears, herringbone gears, arc gears, worm gears.
Customization of special materials: 13 years of manufacturing experience is a great asset. DZE special materials include: stainless steel :9Cr18, 9Cr18Mo; S165M; TC4 titanium alloy, hard aluminum; nylon. Nickel alloy, aluminum bronze.
Applications
Double Row Untoothed Ball Bearing have been used successfully in heavy duty applications
including:
❚ Large excavators
❚ Large cranes
❚ Mining equipment
❚ Wind turbines
❚ Telescopes
DZE bearing design and production range
We offer a recommended range of 42 items balls and crossed rollers designs in
size range from 400 mm to 1900 mm
• Easy to select
• From stock
• Interchangeable
• Cost effective solution
• Compete with market leaders
• Reference range for new products
Ball design -is a simple design for low demanding applications and allows
• A better static capacity for oscillating movements
• A better resistance to structure deformations (clearance)
• A lower friction rate
Crossed roller design -is intended for the most demanding applications and
allows
• A better dynamic capacity and a long service life
• A better stiffness due to the preload
• A better resistance to false brinelling and vibrations
How to use the static limit curve
• Select for one bearing the associated load curve
• The solid line shows the utilization limit curve for the raceways
• The dotted line shows the utilization limit curve for the bolting
