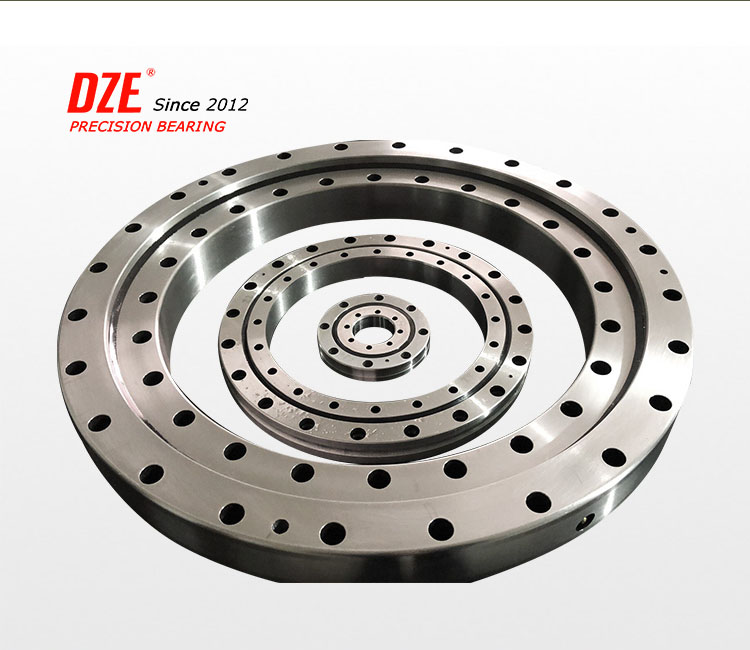

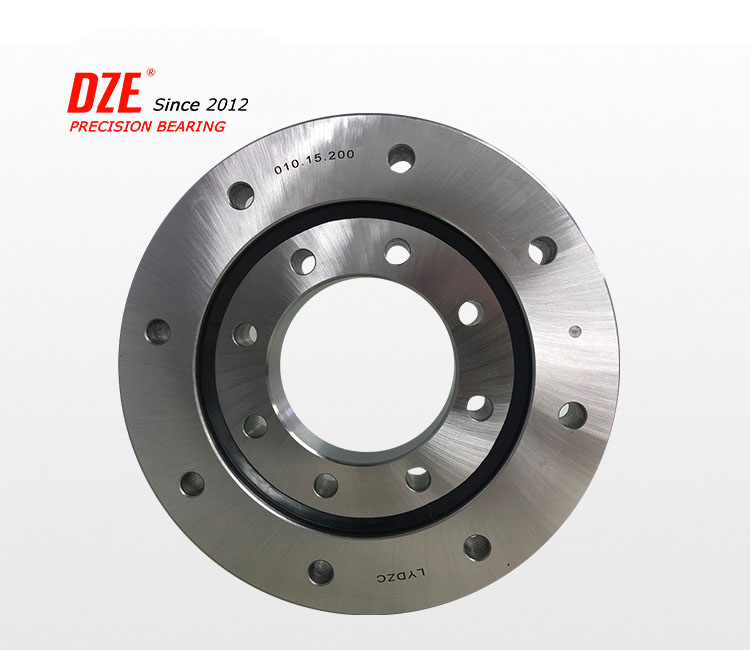

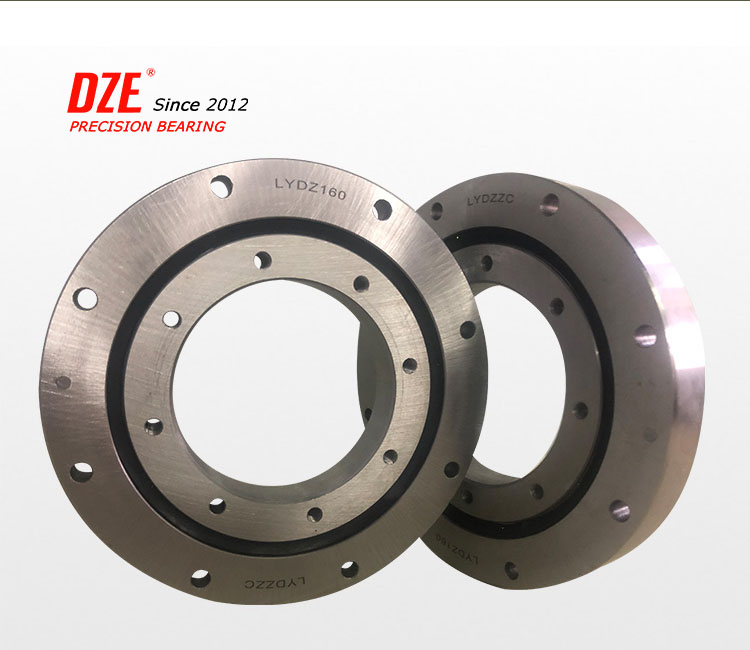

single -row bearings structural features:
Cross roller bearings are cylindrical rollers arranged perpendicularly to each other on a 90° V-groove rolling surface through a spacer block, so require roller braring can withstand multi-directional loads such as radial loads, axial loads and moment loads. The size of the inner and outer rings is miniaturized, and the ultra-thin form is close to the limit of small size, and has high rigidity, and the accuracy can reach P5, P4, and P2 levels. Therefore, require roller braring suitable for the joints and rotating parts of industrial robots, the rotary table of machining centers, precision rotary tables, medical machines, calculators, military industry, Cmanufacturing equipment and other equipment.
Usage features
The divided inner ring (or outer ring) is fixed together with the single -row bearings shaft ring after the rollers and the spacer are installed to prevent separation from each other, so the operation is simple when installing the cross roller shaft ring. The friction between the rollers is eliminated by the spacer to prevent the rollers from falling sideways, so that a stable rotation torque can be obtained. Since the rollers are arranged crosswise, only one set of cross roller bearings can bear loads in all directions, and the rigidity is increased by 3-4 times compared with traditional models.
Rotational accuracy
The vertically arranged rollers in the bearing are equipped with spacers to prevent the rollers from tilting and the mutual friction between the rollers, reducing the rotational torque. In addition, compared with the previous use of steel plate retainers, the rollers will not contact or lock on one side. At the same time, because the inner ring (or outer ring) is a two-part structure, the bearing clearance can be adjusted, and high-precision rotational motion can be obtained even if preloaded.
Diameter | Model | Size | Load | Load | Speed Limit | weight | ||||||
dmm | Dmm | Hmm | holes | r(mm) | Ca | C0a | Cr | Cor | r/min | Kg | ||
kN | kN | kN | kN | |||||||||
130 | DZU080168 | 130 | 205 | 25.4 | 12 | 1.1 | 66 | 240 | 42 | 96 | 227 | 3.3 |
150 | DZU080188 | 150 | 225 | 25.4 | 16 | 1.1 | 71 | 275 | 46 | 110 | 203 | 3.7 |
180 | DZU080218 | 180 | 225 | 25.4 | 20 | 1.1 | 77 | 315 | 49 | 127 | 175 | 4.3 |
220 | DZU080258 | 220 | 295 | 25.4 | 24 | 1.5 | 84 | 375 | 54 | 151 | 148 | 5.1 |
280 | DZU080318 | 280 | 355 | 25.4 | 28 | 1.5 | 93 | 465 | 59 | 185 | 120 | 6.3 |
360 | DZU080398 | 360 | 435 | 25.4 | 36 | 2 | 106 | 590 | 68 | 236 | 96 | 7.8 |
Diameter | MODELS | Size | Axial Load | Radial Load | Speed Limit | weight | ||||||
d | D | H | HOLES | r(mm) | Ca | C0a | Cr | Cor | r/min | Kg | ||
kN | kN | kN | kN | |||||||||
344 | DZU140414 | 344 | 484 | 56 | 24 | 2 | 229 | 520 | 146 | 250 | 28 | 28 |
474 | DZU140544 | 474 | 614 | 56 | 32 | 2.5 | 270 | 680 | 170 | 330 | 38 | 38 |
574 | DZU140644 | 574 | 714 | 56 | 36 | 2.5 | 290 | 800 | 185 | 395 | 44 | 44 |
674 | DZU140744 | 674 | 814 | 56 | 40 | 3 | 315 | 930 | 200 | 455 | 52 | 52 |
774 | DZU140844 | 744 | 914 | 56 | 40 | 3 | 340 | 1050 | 215 | 510 | 60 | 60 |
874 | DZU140944 | 874 | 1014 | 56 | 44 | 360 | 360 | 1170 | 227 | 580 | 67 | 67 |
1022 | DZU141094 | 1022 | 1166 | 56 | 48 | 3.5 | 430 | 1256 | 243 | 650 | 67 | 67 |
*Note: The above lists the standard product models. If you want to customize non-standard DZU bearings, please contact: 13700810892 and we will provide you with a design solution.
