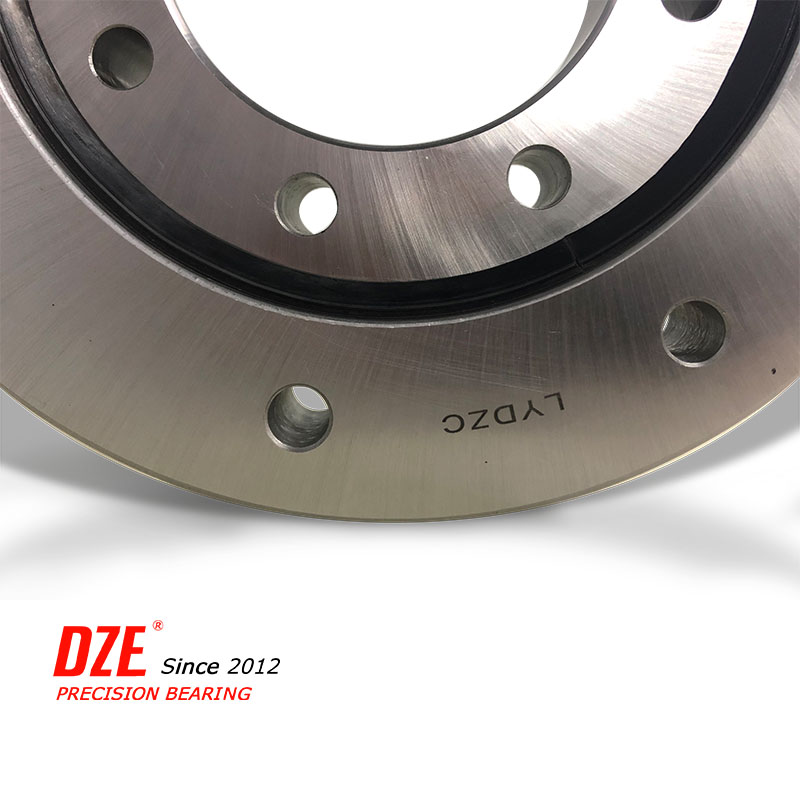

The DZA series has a segmented outer ring and an integrated inner ring design, with a cage and fully loaded roller bearings. Suitable for parts that require high inner ring rotation accuracy.With large diameter bearings.The bearings work is very strict in certain areas.DZE also provides joint bearing and large diameter bearings.DZE is a ball and roller bearing company.

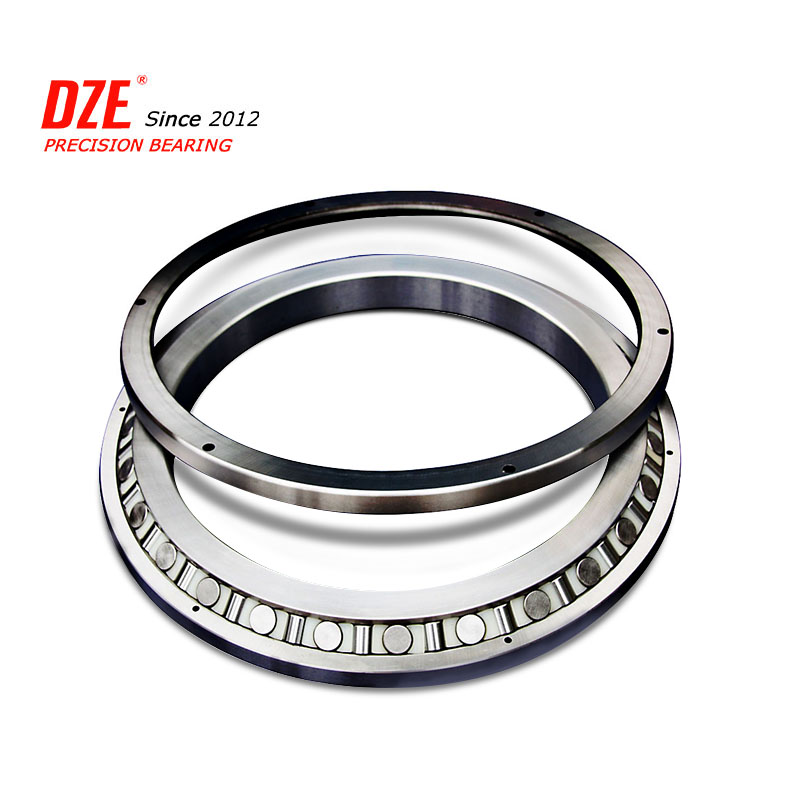

Performance: Flexible rotation and high stiffness, significantly reducing material costs. Install two sets of large diameter bearings raceways and rollers at a right angle cross together, with adjacent rollers facing in opposite directions. Isolation blocks are installed between rollers, and support washers are also installed on the rollers, which allows the two half columns of rollers to be accommodated in the same space. The angle and conical geometry of the bearing ke prakar make the effective span of the bearing several times larger than the actual width of the bearing itself.
Load: Ca=234000N basic rated dynamic load, axial C0a=690000N basic rated static load, axial Cr=166000N basic rated dynamic load, radial C0r=340000N basic rated static load,
LYDZ large diameter bearings machining process: drawing review - forging development - annealing treatment - quenching and tempering treatment - machining - high-frequency treatment of raceway - stabilization treatment - initial grinding - final grinding - finished product inspection - packaging - shipping - after-sales.
tracking - tracking recordsLYDZ bearing packaging: 3-layer packaging bag+wooden box packaging
Transportation: LYDZ ensures that each set of bearings reaches your user unit smoothly, by sea, air, land, and express delivery. LYDZ guarantees to deliver the finished product to you within 30-40 days
Production dimensions: inner diameter ranging from 20mm to 6000mm

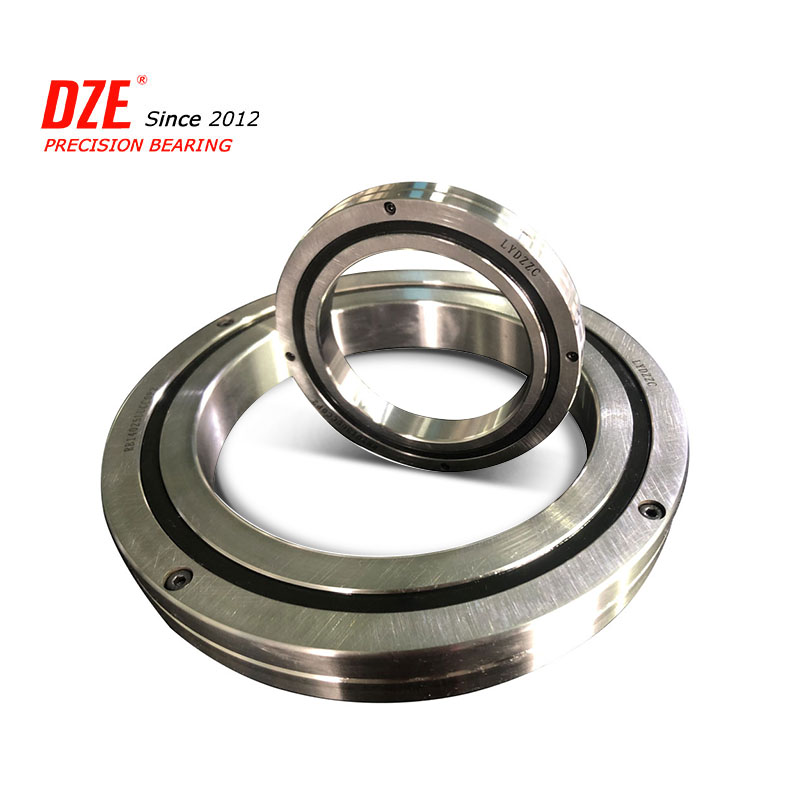

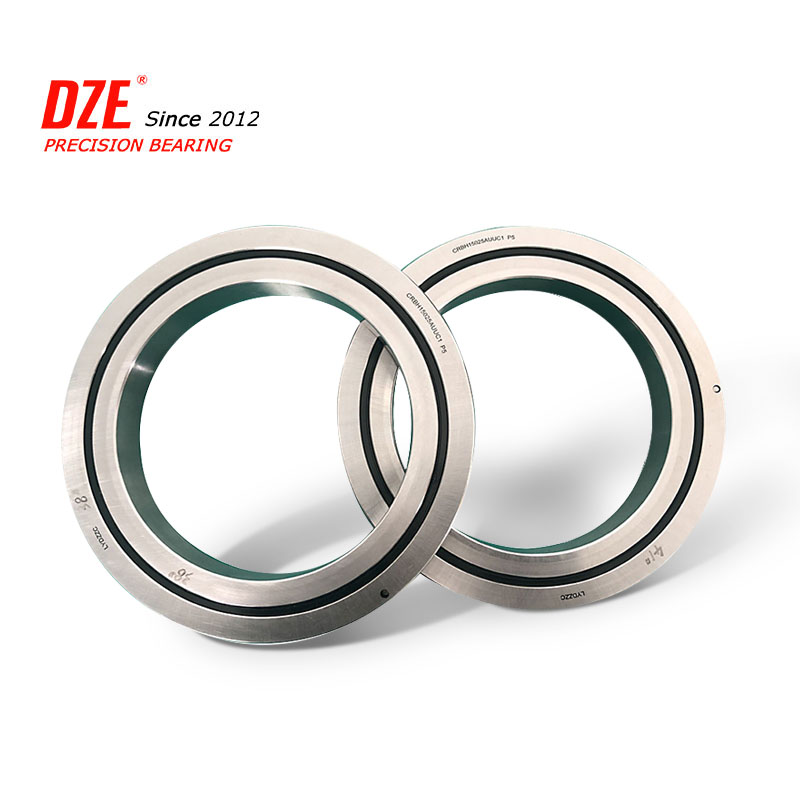

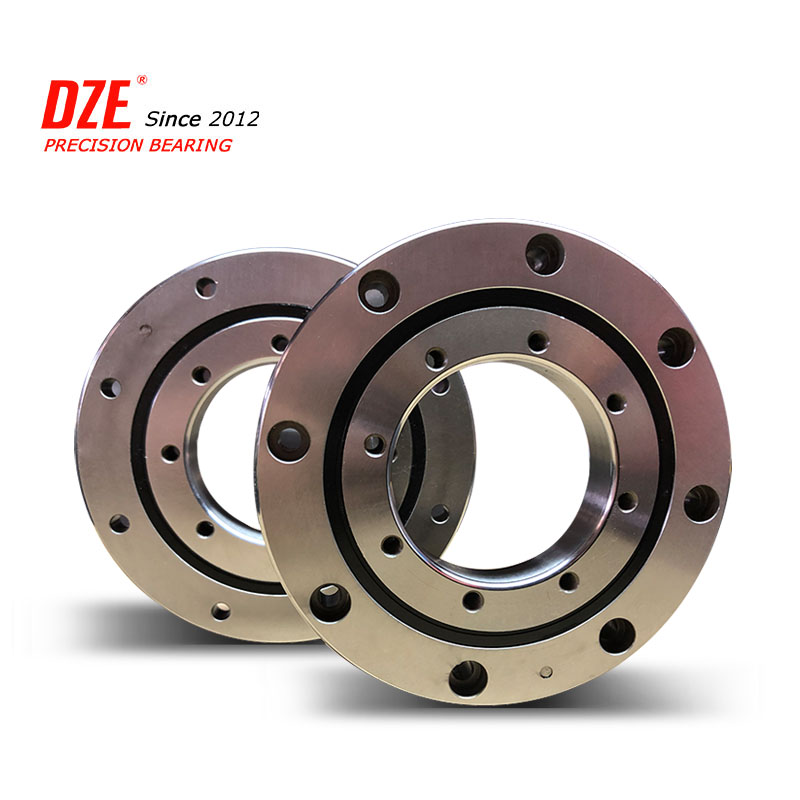

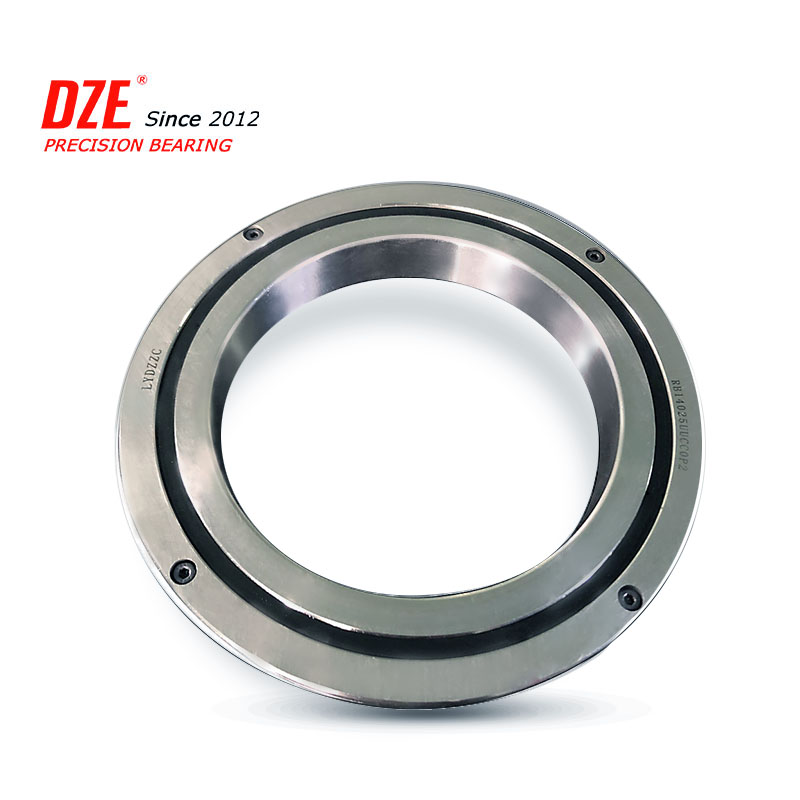

Structure: Cross cross roller bearings, turntable bearings, slewing bearings, RA series cross roller bearings;Design
Guide: LYDZC adopts 3D animation design and finite element analysis to simulate actual models;Installation guide: The key to installation lies in the accuracy of the bearings and the cleanliness of the mating components. You can contact us for professional guidance;
Maintenance guide: Suitable lubricating grease and regular quantitative addition of lubricating grease.
Shaft Diameter | Model | Externbal Dimensions | Size | Load | Weight | ||||||||
inner | outside | Roller center | Height | Holes | r | ds | Dh | C | Co | Kg | |||
d | D | DP | B/B1 | a | b | KN | KN | ||||||
50 | RA 5008 | 50 | 66 | 57 | 8 | 2 | 0.8 | 0.8 | 53.5 | 60.5 | 5.1 | 7.19 | 0.08 |
60 | RA 6008 | 60 | 76 | 67 | 8 | 2 | 0.8 | 0.8 | 63.5 | 70.5 | 5.68 | 8.68 | 0.09 |
70 | RA 7008 | 70 | 86 | 77 | 8 | 2 | 0.8 | 0.8 | 73.5 | 80.5 | 5.98 | 9.8 | 0.1 |
80 | RA 8008 | 80 | 96 | 87 | 8 | 2 | 0.8 | 0.8 | 83.5 | 90.5 | 6.37 | 11.3 | 0.11 |
90 | RA 9008 | 90 | 106 | 97 | 8 | 2 | 0.8 | 0.8 | 93.5 | 100.5 | 6.76 | 12.4 | 0.12 |
100 | RA 10008 | 100 | 116 | 107 | 8 | 2 | 0.8 | 0.8 | 103.5 | 110.5 | 7.15 | 13.9 | 0.15 |
110 | RA 11008 | 110 | 126 | 117 | 8 | 2 | 0.8 | 0.8 | 113.5 | 120.5 | 7.45 | 15 | 0.16 |
120 | RA 12008 | 120 | 136 | 127 | 8 | 2 | 0.8 | 0.8 | 123.5 | 130.5 | 7.84 | 16.5 | 0.17 |
130 | RA 13008 | 130 | 146 | 137 | 8 | 2 | 0.8 | 0.8 | 133.5 | 140.5 | 7.94 | 17.6 | 0.18 |
140 | RA 14008 | 140 | 156 | 147 | 8 | 2 | 0.8 | 0.8 | 143.5 | 150.5 | 8.33 | 19.1 | 0.19 |
150 | RA 15008 | 150 | 166 | 157 | 8 | 2 | 0.8 | 0.8 | 153.5 | 160.5 | 8.82 | 20.6 | 0.2 |
160 | RA 16008 | 160 | 186 | 172 | 13 | 2.5 | 1.6 | 1.2 | 165 | 179 | 23.3 | 44.9 | 0.59 |
170 | RA 17008 | 170 | 196 | 182 | 13 | 2.5 | 1.6 | 1.2 | 175 | 189 | 23.5 | 46.5 | 0.64 |
180 | RA 18008 | 180 | 206 | 192 | 13 | 2.5 | 1.6 | 1.2 | 185 | 199 | 24.5 | 49.8 | 0.68 |
190 | RA 19008 | 190 | 216 | 202 | 13 | 2.5 | 1.6 | 1.2 | 195 | 209 | 24.9 | 51.5 | 0.69 |
200 | RA 20008 | 200 | 226 | 212 | 13 | 2.5 | 1.6 | 1.2 | 205 | 219 | 25.8 | 54.7 | 0.71 |
