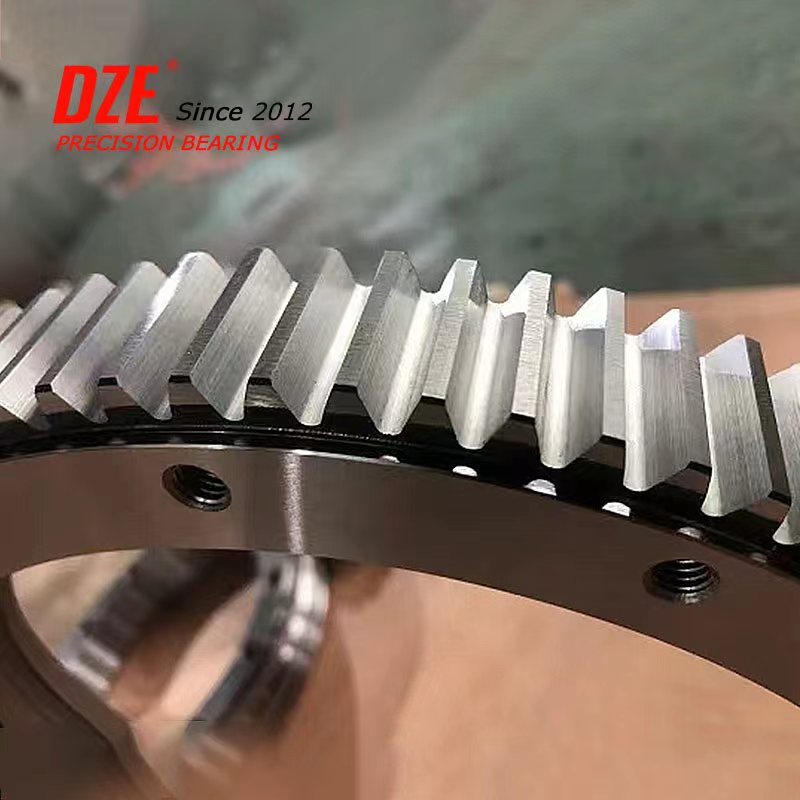

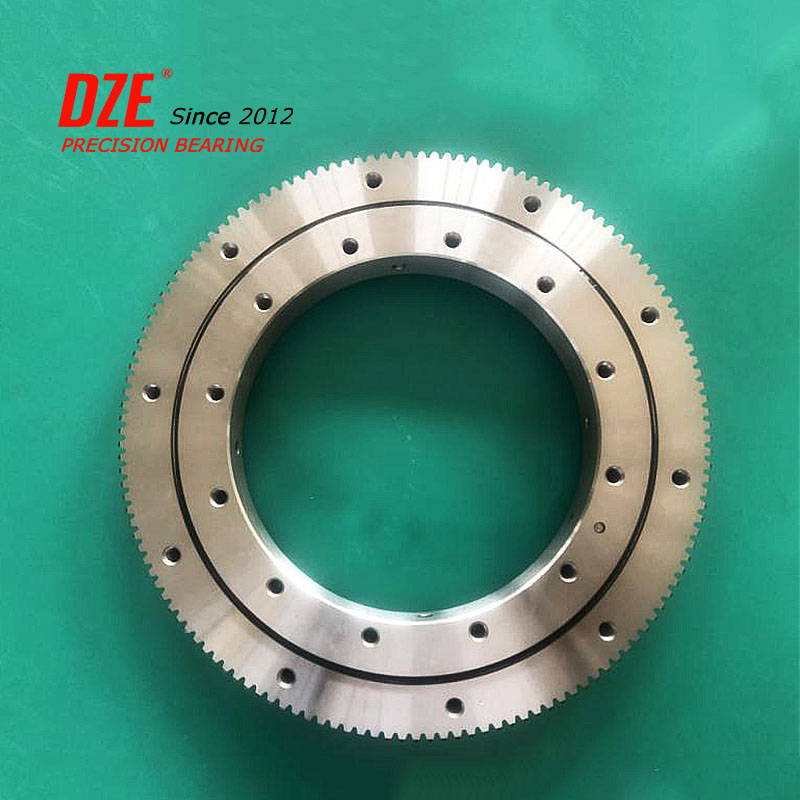

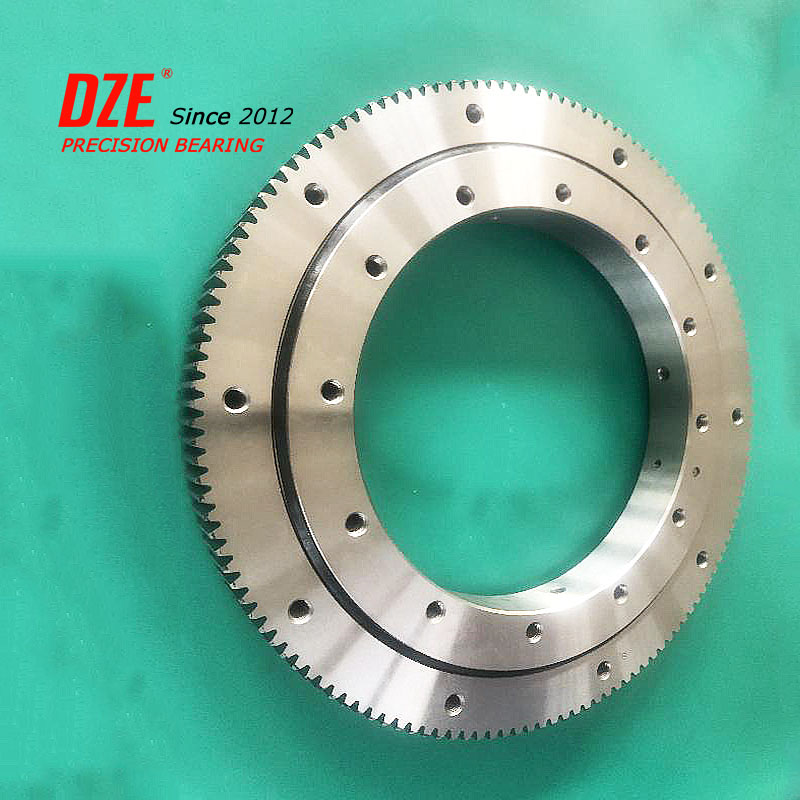

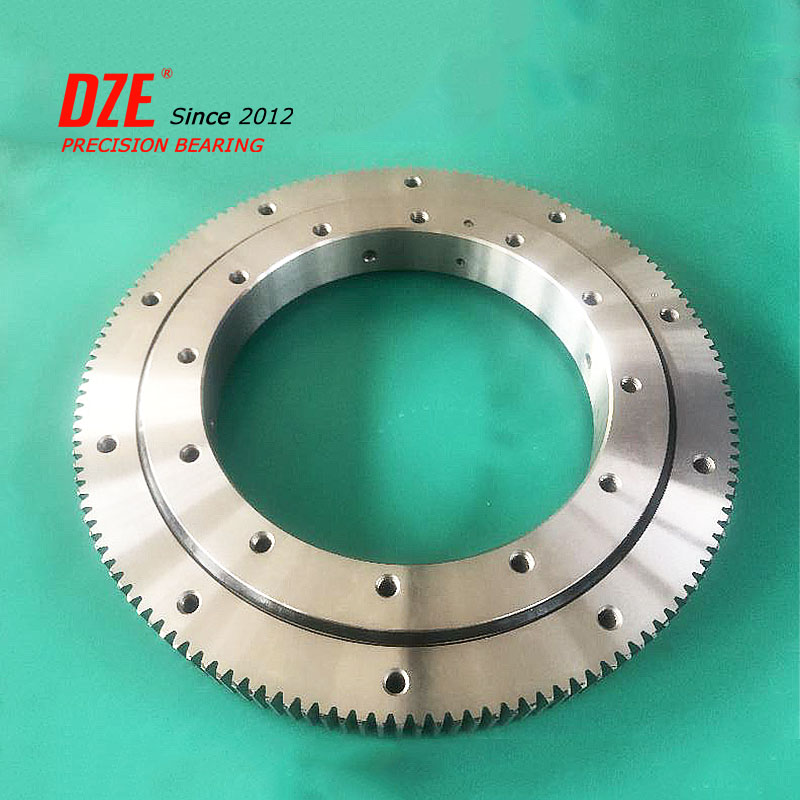

9E-1B14-0179-0624-1 Slewing bearing Features
External gear Slewing Rings are large-sized bearings which can accommodate a combined load, i.e. axial, radial loads and tilting moment. 9E-1B14-0179-0624-1 Slewing bearing is Four-Point ball bearings usually provided with holes for fixing bolts; internal, external or no gear; and lubrication holes and seals, which allow a compact and economical arrangement. In addition 9E-1B14-0179-0624-1 Slewing bearing often enable the elimination of many components necessary in the classical bearing arrangement.
Structure:Four-Point ball bearings
Specifications:9E-1B14-0179-0624-1 Slewing bearing
Structure:External gear Slewing Rings
Material:42CrMo,Forged,HB229-269;
Accuracy:P4 Level Accuracy;
Clearance:0-0.03mm;
Our Advantage
24-Hour Service
DZE bearings provide 24-hour service, providing pre-sales, sales and after-sales services.
Large Inventory
DZE bearings are available in stock for standard sizes and can be shipped the same day. They feature P4/P2 precision.
Customization
DZE can customize any size of bearings to your needs, including gears and pinions.
Serving The World
DZE has been established for more than 13 years and serves customers all over the world - providing customers with high-quality

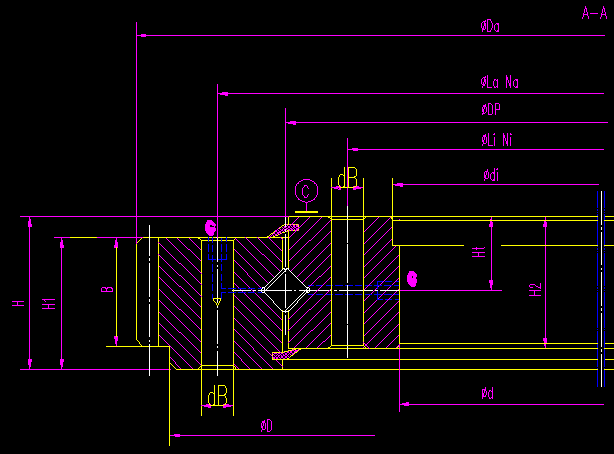

9E-1B14-0179-0624-1 Slewing bearing Parameters
| Model | 9E-1B14-0179-0624-1 | Luoyang bearing manufacturer |
| d | 124.5mm | 0/+0.10mm |
| di | --- | --- |
| H | 35mm | +0.2/-0.2 |
| D | --- | --- |
| Da | 244mm | 0/-0.15mm |
| Ht | 10mm | +0.3/0 |
| h2 | 10mm | +0.3/0 |
| H1 | 30mm | 0/-0.25 |
| H2 | 30mm | 0/-0.25 |
| Weight | 7.5KG | |
| DP | 179mm | |
| dB | 11mm | |
| La | 214mm | +0.2/-0.2 |
| Na | 24 | |
| Li | 144.5mm | +0.2/-0.2 |
| Ni | 20-1 | |
| Fr zul | 6000N | |
| Temper Factors | -25°----80° | |
| Cr | 90KN |
9E-1B14-0179-0624-1 ;
9E-1B14-0188-1029 ;
9E-1B16-0188-0815 ;
9E-1B20-0222-0718 ;
9E-1B20-0223-0287 ;
9E-1B20-0223-1140 ;
9E-1B17-0235-0182 ;
9E-1B16-0258-0996 ;
9E-1B20-0288-1072 ;
9E-1B20-0287-0983 ;
9E-1B20-0289-0674-2 ;
9E-1B20-0289-0674 ;
9E-1B15-0282-1231 ;
9E-1B45-0452-0742
9E-1B20-0307-0733 ;
9E-1B22-0308-1397 ;
9E-1B22-0308-0443 ;
9E-1B20-0309-0549 ;
9E-1B22-0343-1167 ;
9E-1B22-0344-0396 ;
9E-1B20-0343-0667 ;
9E-1B22-0343-0768 ;
9E-1B20-0345-1153 ;
9E-1B20-0345-0286 ;
9E-1B20-0345-0273 ;
9E-1B20-0343-0762 ;
9E-1B20-0345-0311 ;
9E-1B20-0411-1161 ;
9E-1B25-0401-0519 ;
9E-1B25-0422-0966 ;
9E-1B25-0422-0285 ;
9E-1B25-0422-0627 ;
9E-1B25-0422-0761 ;
9E-1B25-0422-0989 ;
9E-1B25-0422-0779 ;
9E-1B25-0422-0816 ;

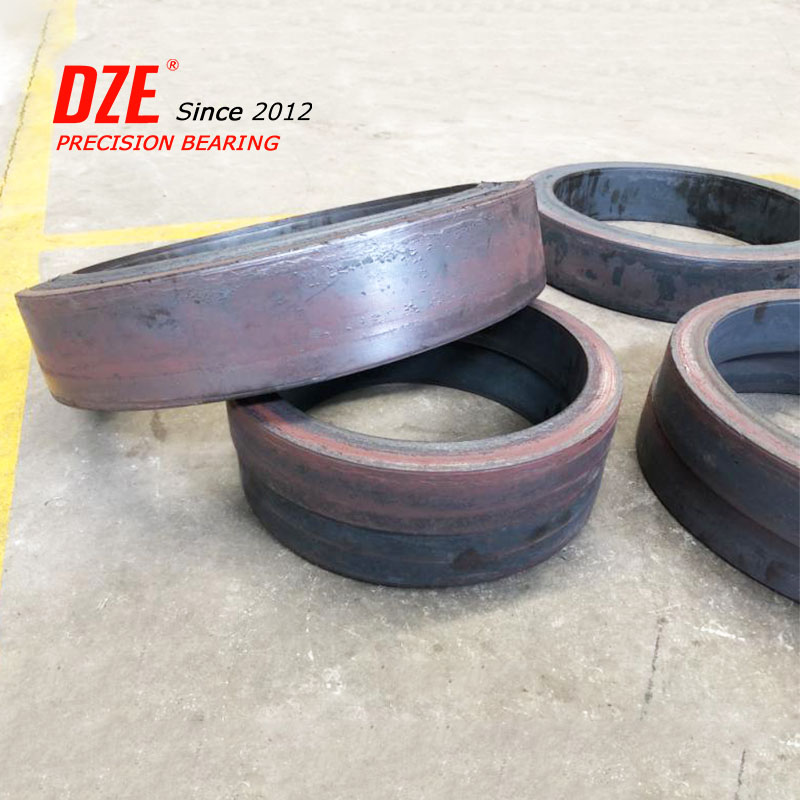

Slewing Ring Forgings
Each of our slewing ring is made of high-quality alloy steel. Four-Point ball bearings The raw materials meet national standards in terms of both composition and heat treatment. We use a variety of alloy steels, including 42CrMo, GCr15, GCr15SiMn, 50Mn, 45# steel, 9Cr18Mo stainless steel, and TC4 titanium alloy.
Contact US:Luoyang bearing manufacturer
Whatsapp:+8613700810892
Slewing Ring Packaging
Each set of DZE VSU series bearings is coated with anti-rust oil before shipment, and EP2 grease or 7018 aviation grease is added to the interior of the bearings.DZE is a China bearing factory .
DZE China bearing are generally packaged in three layers: first layer: waterproof plastic film, second layer: kraft paper, and third layer: packaging bags. Our packaging bags are graded in three colors: blue, white, and red. The bearings are marked with the "DZE" factory logo. Furthermore, to prevent damage to the bearings, we package all bearings in wooden crates, which significantly minimizes damage to the bearings and packaging.
For RU, RB, and SX cross-roller bearings, as well as harmonic reducer bearings, we use vacuum packaging with paper boxes as the outer packaging. This packaging method is very effective.
