Factory Introduction
The 90-1b22-0163-1038 Slewing Rings produced by Luoyang DZE Factory is produced by Luoyang DZE Bearing Co., Ltd. Our headquarters is located in Luoyang,We are China bearing in Henan Province, which is a Slewing Rings manufacturer Slewing Bearing Factory in Henan Province. We are committed to the demand of the current turntable bearing market and strive to provide customers with products and perfect solutions. On the quality assurance "continuous" concept, to ensure that each set of bearings are strictly tested before leaving the factory; Pay attention to cutting-edge technology in design, and ensure the design to meet the needs of users; In terms of price, based on the control of the cost of product materials, design and efficient resource management, it ensures the competitive price while ensuring the product.
90 series four-point ball bearing models

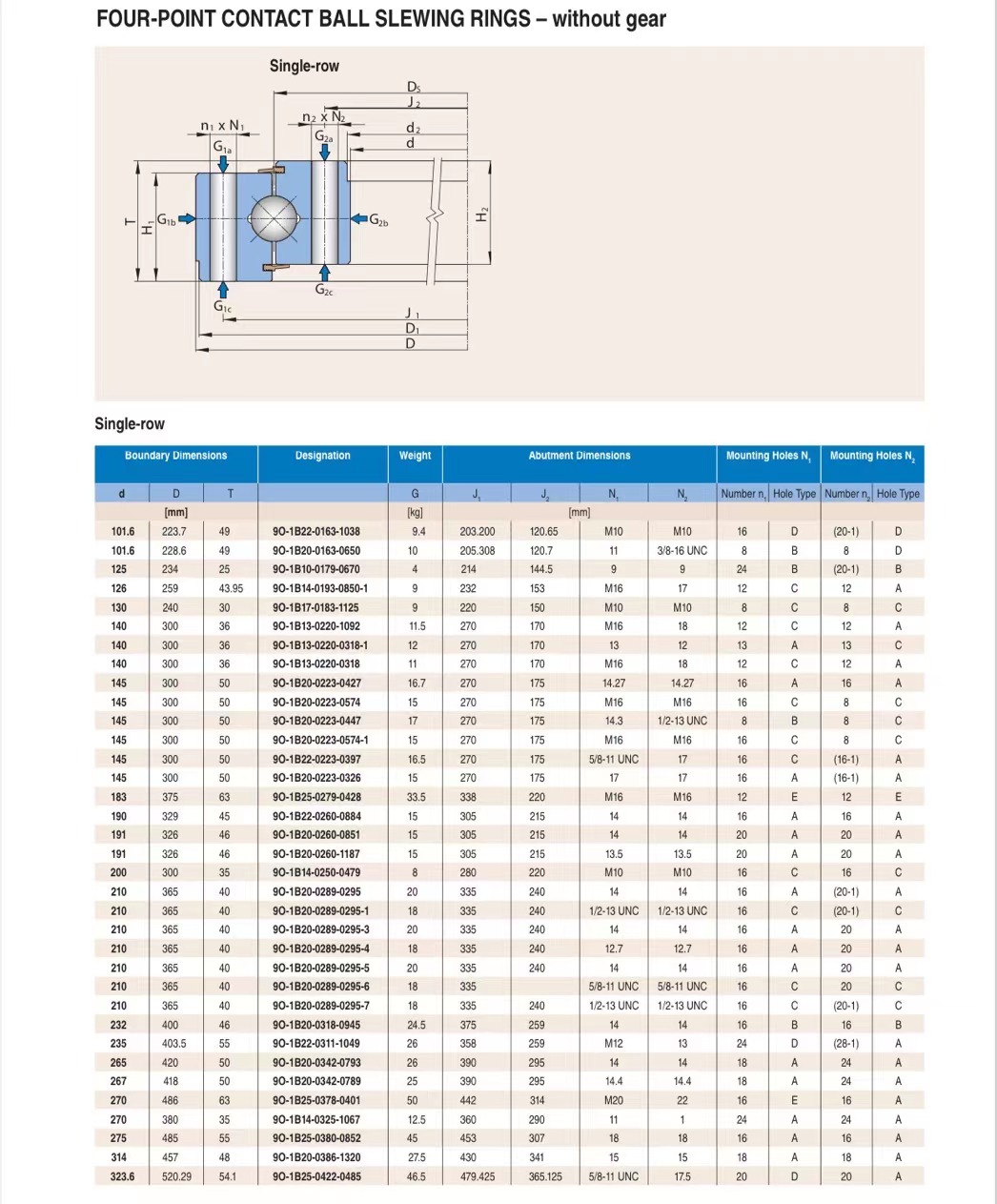

Drawing-90-1b22-0163-1038 ball bearing
90-1b22-0163-1038 ball bearing is a precision Slewing Rings with cylindrical rollers as rolling elements. There are three types of mounting structures: both inner and outer rings are smooth holes, and the countersunk holes are in the same direction;he outer ring is smooth and the inner ring is threaded;
90-1b22-0163-1038 ball bearing is used for bearings with industrial mechanical arms,China Bearing.
What kind of Slewing Rings is model 90-1b22-0163-1038 ball bearing?
The cross roller bearing is suitable for precise applications requiring multi-directional bearing, such as robot arm, precision turntable, etc.
The bearing itself is designed with negative clearance, so the bearing is rigid enough to withstand large loads and has high precision (basically, it beats between 0.001mm and 0.01mm, and the bearing precision is above P5).
How to install this series of bearings?
The selection of cross roller bearing is mainly to consider the mounting mode and size of the bearing, which can be divided into the following two types:
1. The cross roller bearing without installation hole has a thinner wall thickness, which is suitable for small installation space. High Precision Bearing needs to be pressed on the equipment with flange plate. The specific difference of RB/RE/CRBH/SX/RA type is as follows
2. The inner and outer rings of the cross roller bearing with mounting holes are designed with mounting holes for convenient installation and use. They are widely used in robots and turntables.DZE is a Slewing Bearing Factory in China.

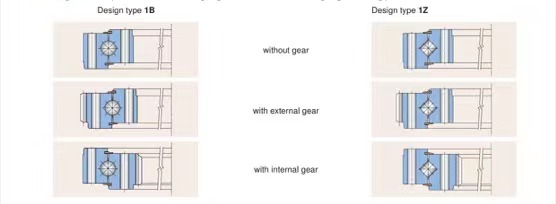

Product Structure

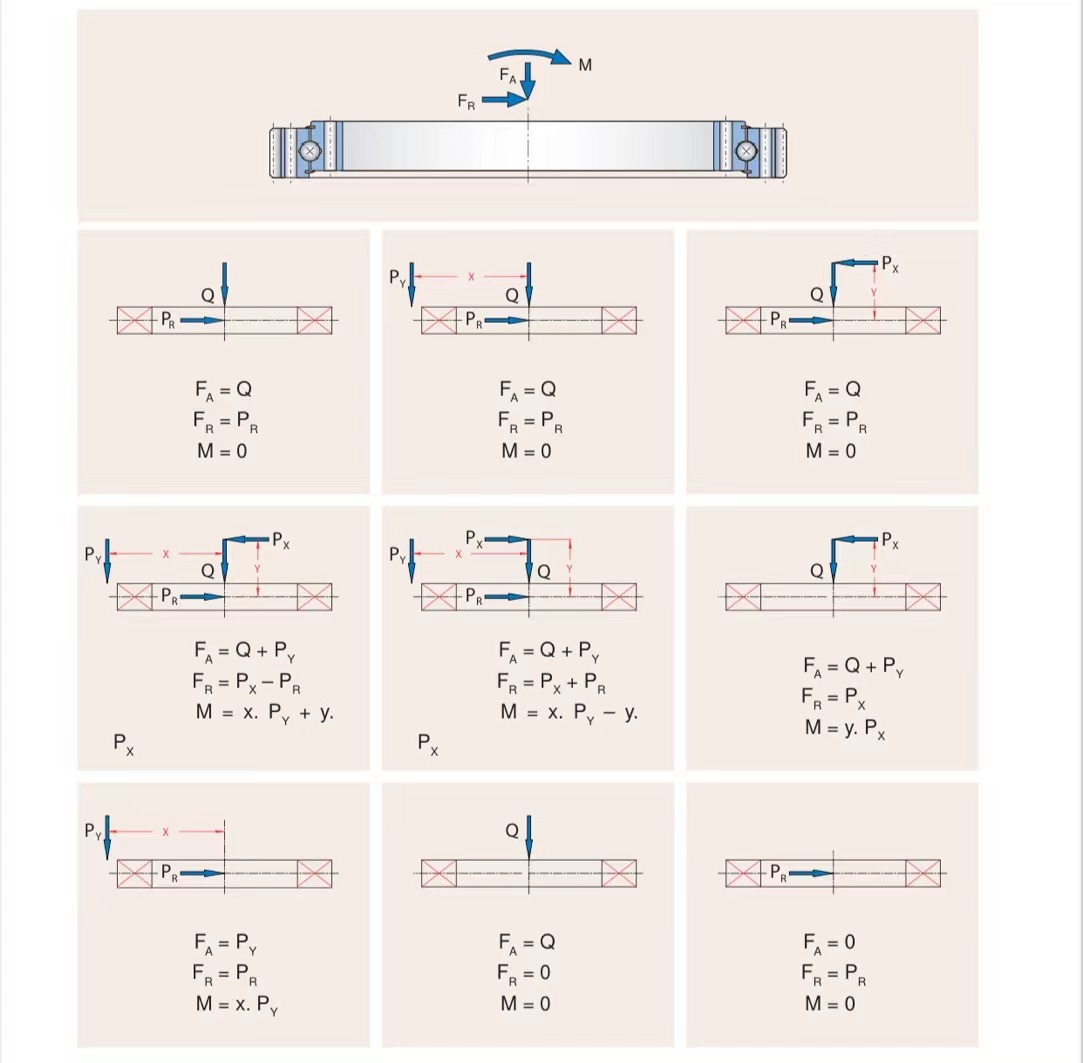

Force analysis
90-1b22-0163-1038 ball bearing Similar models
