QUALITY ASSURANCE-XSA140414 slewing ring
In a complex manner, production quality is systematically ensured with the goal to always meet the customers needs during all phases of the manufacturing process.
Pre-production phase:
– pre-sales service – professional services for customers
– marketing – market research from the technical and commercial point of view, monitoring of development trends.
Production phase:About cross roller Bearing
– modern manufacturing methods, tools and procedures
– new materials and methods of heat-treatment
– continuous innovation of the inspection means and methods – product testing on specialized test beds
– continuous improvement through TQM.
Post-production phase:
– testing of bearing quality in operation; gathered experience is utilized for further performance improvement – after-sales service – help by specifying application of the products.

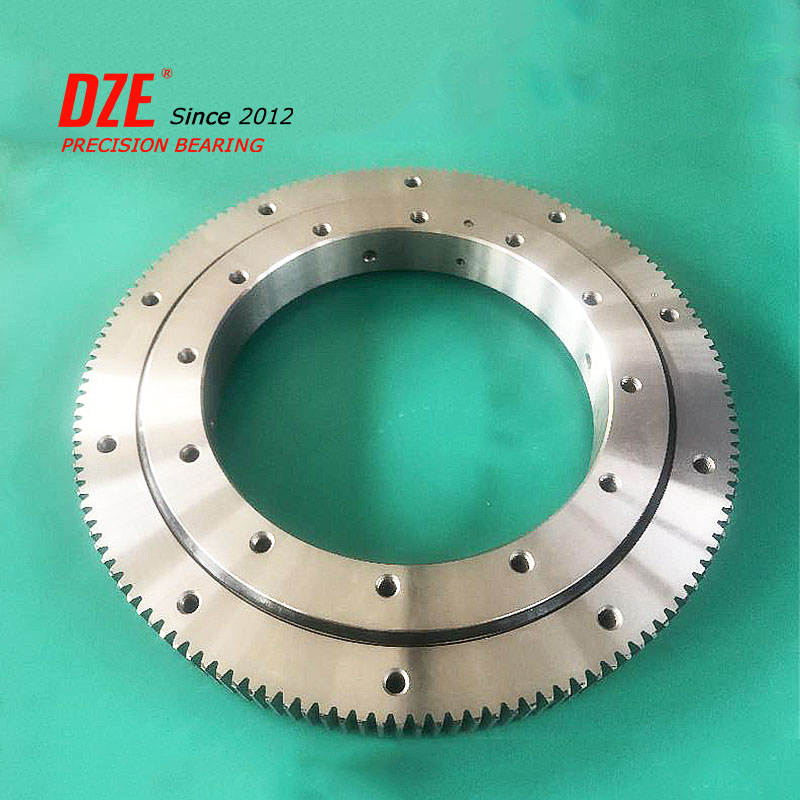

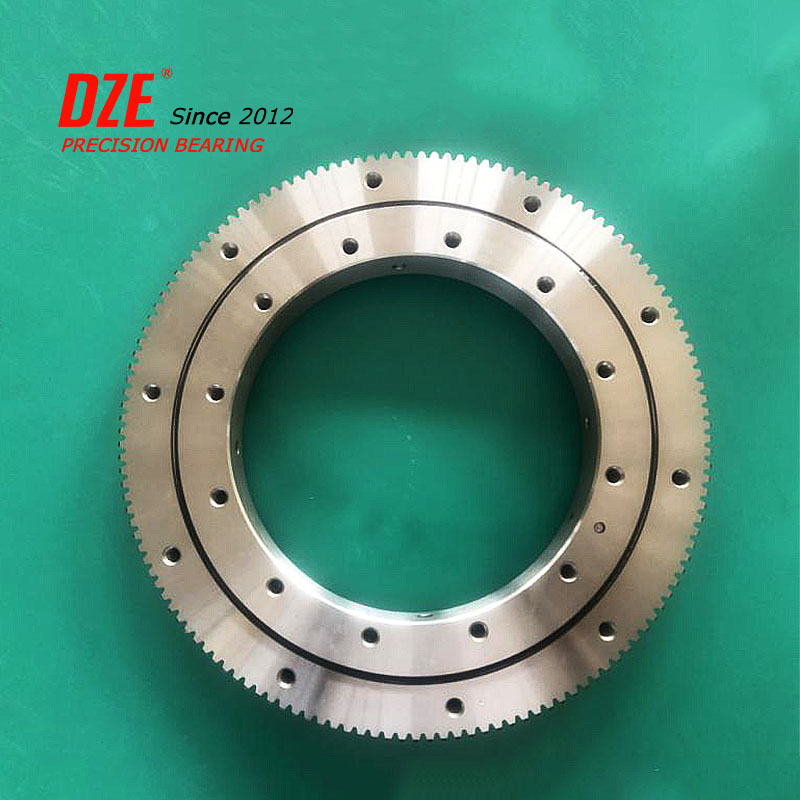

Roller bearingsXSA140414 slewing ring From China bearing factory

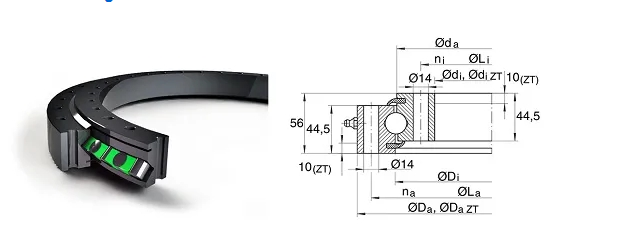

| di | 344mm | Tolerance: + 0, 6/0 |
| Da | 503.3mm | Tolerance: 0, 6 |
| Da ZT | 484mm | Suitable for bearing with centering sleeve (suffix ZT) Length of centering sleeve (see part figure) Tolerance: - IT8 |
| Di | 445,5mm | Tolerance: + 0, 6 |
| da | 442,5mm | Tolerance: 0, 6 |
| di ZT | 344mm | Suitable for bearing with centering sleeve (suffix ZT) Length of centering sleeve (T, T) (see part figure) Tolerance: + IT8 |
| La | 460mm | |
| Li | 368mm | |
| na | 24 | The number of fixed holes on the outer ring |
| ni | 24 | The number of fixed holes in the inner ring |
| m | 28kg | quality |
| Fr per | 132200 N | Maximum allowable radial load to overcome friction |
| Ca | 188000 N | Basic rated dynamic load, axial |
| C0a | 740000 N | Basic rated static load, axial |
| Cr | 123000 N | Basic dynamic load rating, radial |
| C0r | 325000 N | Basic static load rating, radial |
| 4 cone lube nozzles per DIN 71412-a S8x1 are arranged in A uniform circular direction | ||
| Bearings without holes on the inner and outer rings are also suitable. |
LYDZC precision bearing-China bearing factory application:
DZE roller bearings, VSA series bearings for:
Small Crane, boom and elevator.
Industrial position sensors and turntables.
Rotation slot
Stretching packing machine
Bottling machine
Conveyor and related handling equipment
Rotation display
The common model parameters of the LYDZ Luoyang DZE Bearing Co., Ltd.. XSU140544 are as follows:
cross roller Bearing XSA14 Standard Series 14, Size Range: 344-1024, Structure: External Gear Teeth, Both Lips Sealed
XSA140414-N, internal longitude 344, outer diameter 503,3, assembly height: 56
XSA140544-N, inner longitude 474, outer diameter 640,3, height: 56
XSA140644-N, inner longitude 574, outer diameter 742,3, altitude: 56
XSA140744-N, inner longitude 674, outer diameter 838,1, height 56
XSA140844-N, Internal longitude: 774, External diameter 950,1, height 56
XSA140944-N, inner longitude 874, outer diameter 1046,1, height 56
XSA141094-N, inner longitude 1024, outer diameter 1198, 1, height 56
China bearing factory XSI 14 Standard Series 14, Size Range: 325-984mm, Structure: internal gear teeth, bilateral lip seal
XSI 140414-N
XSI 140544-N
XSI 140644-N
XSI 140744-N
XSI 140844-N
XSI 140944-N
XSI 141094-N
XSA140414 slewing ring XSU08 Standard Series 08, Size Range: 130-360mm, Structure: Toothless, both sides thin sheet sealed
XSU080168, inner longitude 130, outer diameter 205
XSU080188, internal longitude 150, outer diameter 225
XSU080218, inner longitude 180, outer diameter 255
XSU080258, inner diameter 220, outer diameter 295
XSU080318, inner diameter 280, outer diameter 355
XSU080398, inner diameter 360, outer diameter 435
XSA140414 slewing ring XSU14 Standard Series 14, Size Range: 344-1024mm, Structure: Toothless, Both Lips Sealed
XSU140414, inner diameter 344, outer diameter 484, height 56mm
XSU140544, inner diameter 474, outer diameter 614, height 56mm
XSU140644, inner diameter 574, outer diameter 714, height 56mm
XSU140744, inner diameter 674, outer diameter 814, height 56mm
XSU140844, inner diameter 774, outer diameter 914, height 56mm
XSU140944, inner diameter 874, outer diameter 1014, height 56mm
XSU141094, inner diameter 1024, outer diameter 1164, height 56mm
XU050077, inner diameter 40, outer diameter 112
XU060094, inner diameter 57, outer diameter 140
XU060111, inner longitude 76, 2, outer diameter 145, 79
XU080120, inner diameter 69, outer diameter 170
XU080149, inner diameter 101, 6, outer diameter 196, 85
XU120179, inner diameter 124, 5, outer diameter 234
XU120222, inner diameter 140, outer diameter 300
XU160260, inner diameter 191, outer diameter 329
XU080264, inner diameter 215,9, outer diameter 311
XU160405, inner diameter 336, outer diameter 474
XU080430, inner diameter 380, outer diameter 480
XU 300515, inner diameter 384, outer diameter 646
