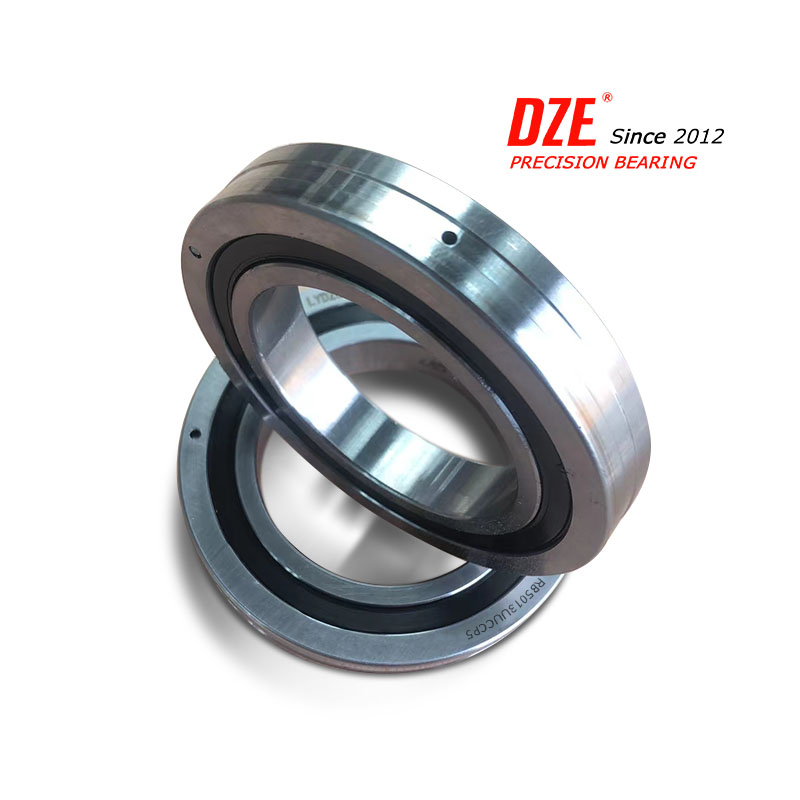

Stainless Steel Crossed Roller Bearings

Brand DZE
Product origin Luoyang China
Delivery time 15-30 days
Supply capacity 2000sets/mouth

DZE company introduction.pdf

The DZB series cross cylindrical roller bearing is the basic type of cross cylindrical roller bearing, with the inner and outer ring sizes being minimized to a very small extent. Its structure is that the outer ring is segmented and the inner ring is designed as a whole, suitable for parts that require high rotation accuracy of the inner ring. Our company can provide you with various types of bearings. Welcome to inquire by phone

Stainless Steel Crossed Roller Bearings-Chinese roller bearing

DZB Chinese roller bearing -RB type (outer ring segmentation type)The RB series

Stainless Steel Crossed Roller Bearings is the basic type of cross cylindrical roller bearing and China bearing manufacturers, with the inner and outer ring sizes minimized to a very small extent. Structure is that the outer ring is segmented and the inner ring is designed as a whole, suitable for parts that require high rotational accuracy of the inner ring.

Chinese roller bearing characteristics:

High precision: The precision reaches P5/P4/P2 level;
2. Long lifespan: DZB/RB China bearing manufacturers are preloaded; The size of the inner and outer rings has been minimized to a very small extent, with the outer ring being a segmented type and the inner ring being an integrated design, suitable for parts that require high rotation accuracy of the inner ring.

3. China bearing manufacturers capacity: capable of withstanding axial loads, radial loads, and overturning loads.

4. Small size: Chinese roller bearing has a small volume, which can save space for the host

5. Good material: High quality bearing steel material, providing material analysis composition

6. High hardness: overall quenching HRC56-63Scope of application: Widely used in precision rotating workbenches, mechanical arm rotating joints, medical equipment, measuring instruments, and so on.

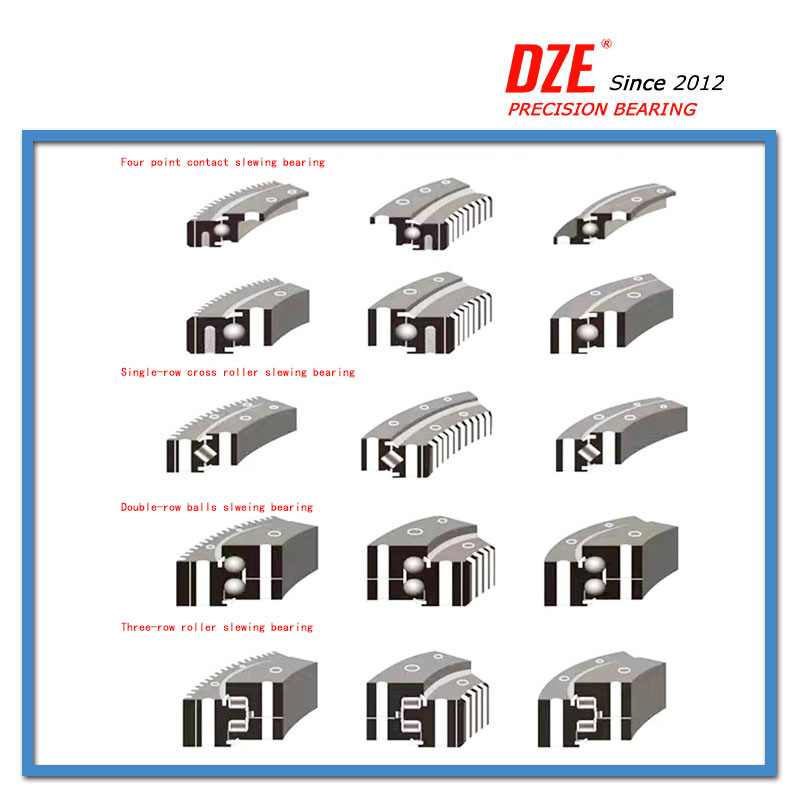

DZE Precision Bearing Factory, same type of structural bearings

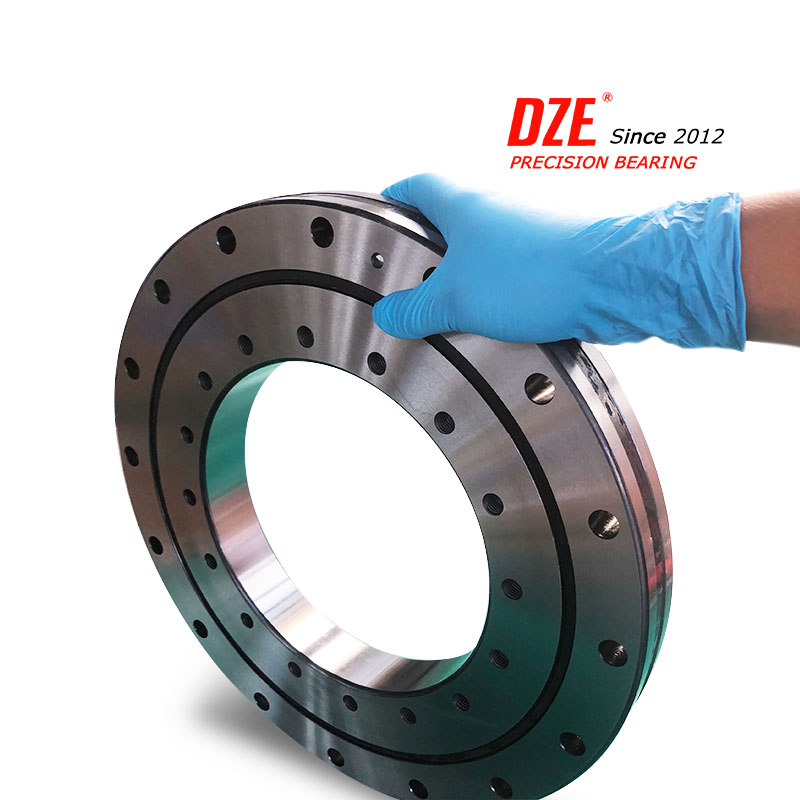

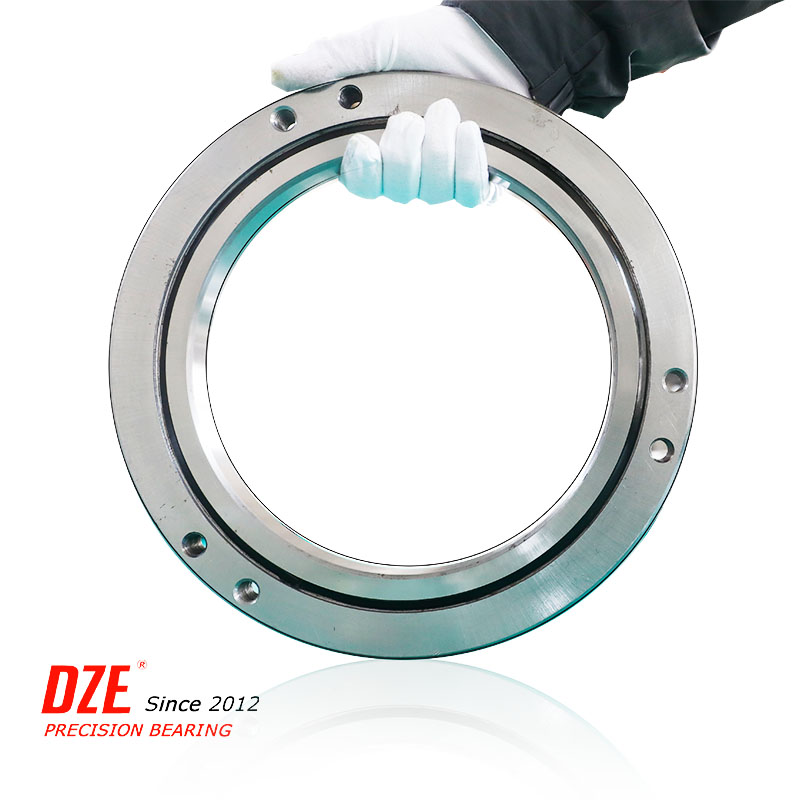

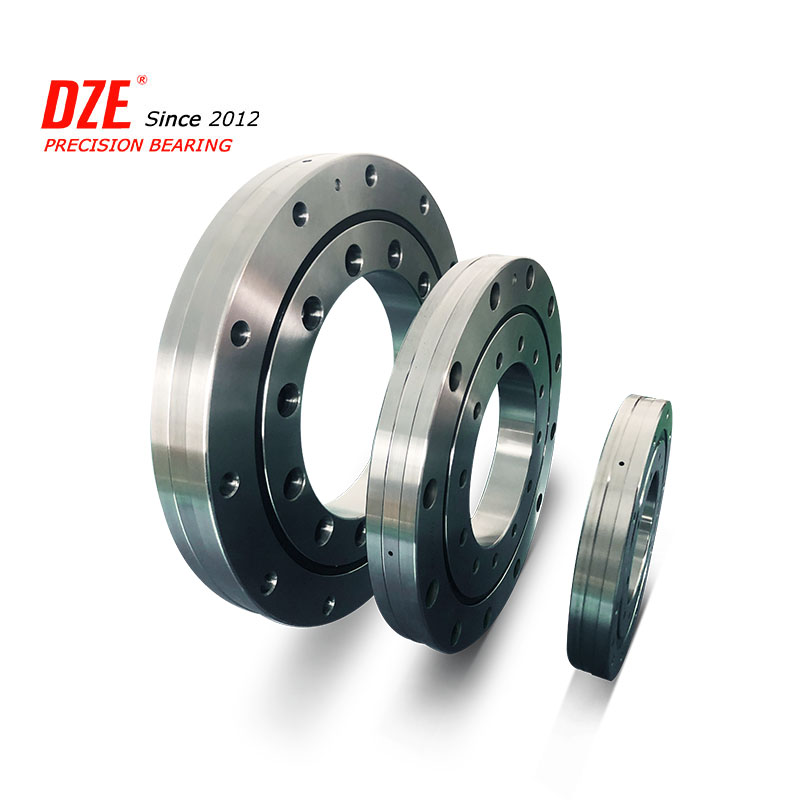

Strength display-Chinese roller bearing

DZB Cross Roller Bearing Parameters-Chinese roller bearing

Shaft diameter	Model	Dimensions							Size		Load		Weight
		inner	Outside	Pitch Diameter	Height	Holes		r	ds	Dh	C	Co	Kg
		d	D	DP	B/B1	a	b	r	ds	Dh	KN	KN	Kg
50	DZ/RB 5013	50	80	64	13	2.5	1.6	1	57	72	16.7	20.9	0.27
60	DZ/RB 6013	60	90	74	13	2.5	1.6	1	68	82	18	24.3	0.3
70	DZ/RB 7013	70	100	84	13	2.5	1.6	1	78	92	19.4	27.7	0.35
80	DZ/RB 8016	80	120	98	16	3	1.6	1	91	111	30.1	42.1	0.7
90	DZ/RB 9016	90	130	108	16	3	1.6	1.5	98	118	31.4	45.3	0.75
100	DZ/RB 10016	100	140	119.3	16	3.5	1.6	1.5	109	129	31.7	48.6	0.83
100	DZ/RB 10020	100	150	123	20	3.5	1.6	1.5	113	133	33.1	50.9	1.45
110	DZ/RB 11012	110	135	121.8	12	2.5	1	1	117	127	12.5	24.1	0.4
	DZ/RB 11015		145	126.5	15	3.5	1.6	1	122	136	23.7	41.5	0.75
	DZ/RB 11020		160	133	20	3.5	1.6	1.5	120	140	34	54	1.56
120	DZ/RB 12016	120	150	134.2	16	3.5	1.6	1	127	141	24.2	43.2	0.72
120	DZ/RB 12025	120	180	148.7	25	3.5	2	2	133	164	66.9	100	2.62
130	DZ/RB 13015	130	160	144.5	15	3.5	1.6	1	137	152	25	46.7	0.72
130	DZ/RB 13025	130	190	158	25	3.5	2	2	143	174	69.5	107	2.82
140	DZ/RB 14016	140	175	154.8	16	2.5	1.6	1.5	147	162	25.9	50.1	1
140	DZ/RB 14025	140	200	168	25	3.5	2	2	154	185	74.8	121	2.96
150	DZ/RB 15013	150	180	164	13	2.5	1.6	1	157	172	27	53.5	0.68
	DZ/RB 15025		210	178	25	3.5	2	2	164	194	76.8	128	3.16
	DZ/RB 15030		230	188	30	4.5	3	2	173	211	100	156	5.3
160	DZ/RB 16025	160	220	188.6	25	3.5	2	2	173	204	81.7	135	3.14
170	DZ/RB 17020	170	220	191	20	3.5	1.6	2	184	198	29	62.1	2.21
180	DZ/RB 18025	180	240	210	25	3.5	2	2	195	225	84	143	3.44
190	DZ/RB 19025	190	240	211.9	25	3.5	1.6	1.5	202	222	41.7	82.9	2.99
200	DZ/RB 20025	200	260	230	25	3.5	2	2.5	215	245	84.2	157	4
	DZ/RB 20030		280	240	30	4.5	3	2.5	221	258	114	200	6.7
	DZ/RB 20035		295	247.7	35	5	3	2.5	225	270	151	252	9.6
220	DZ/RB 22025	220	280	250.1	25	3.5	2	2.5	235	265	92.3	171	4.1
240	DZ/RB 24025	240	300	269	25	3.5	2	3	256	281	68.3	154	4.5
250	DZ/RB 25025	250	310	277.5	25	3.5	2	3	265	290	69.3	150	5
	DZ/RB 25030		330	287.5	30	4.5	3	3	269	306	126	224	8.1
	DZ/RB 25040		355	300.5	40	6	3.5	3	275	326	195	348	14.8
300	DZ/RB 30025	300	360	328	25	3.5	2	3	315	340	76.3	178	5.9
	DZ/RB 30035		395	345	35	5	3	3	322	368	183	367	13.4
	DZ/RB 30040		405	351.6	40	6	3.5	3	326	377	212	409	17.2
350	DZ/RB 35020	350	400	373.4	20	3.5	1.6	3	363	383	54.1	143	3.9
400	DZ/RB 40035	400	480	440.3	35	5	3	3.5	422	459	156	370	14.5
400	DZ/RB 40040	400	510	453.4	40	6	3.5	3.5	428	479	241	531	23.5
450	DZ/RB 45025	450	500	474	25	3.5	1.6	1.5	464	484	61.7	182	6.6
500	DZ/RB 50025	500	550	524.2	25	3.5	1.6	1.5	514	534	65.5	201	7.3
	DZ/RB 50040		600	548.8	40	6	3	3.5	526	572	239	607	26
	DZ/RB 50050		625	561.6	50	6	3.5	3.5	536	587	267	653	41.7
600	DZ/RB 60040	600	700	650	40	6	3	4	627	673	264	721	29
700	DZ/RB 70045	700	815	753.5	45	6	3	4	731	777	281	836	46
800	DZ/RB 80070	800	950	868.1	70	6	4	5	836	900	468	1330	105
900	DZ/RB 90070	900	1050	969	70	6	4	5	937	1001	494	1490	120
1000	DZ/RB 1000110	1000	1250	1114	110	6	6	6	1057	1171	1220	3220	360
1250	DZ/RB 1250110	1250	1500	1365.8	110	6	4	6	1308	1423	1350	3970	440
