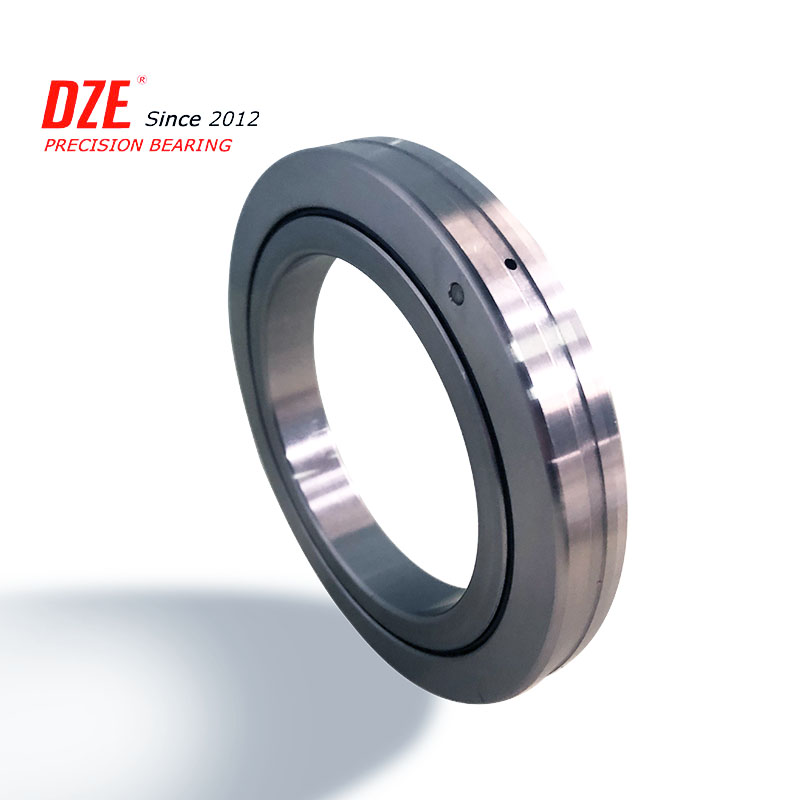

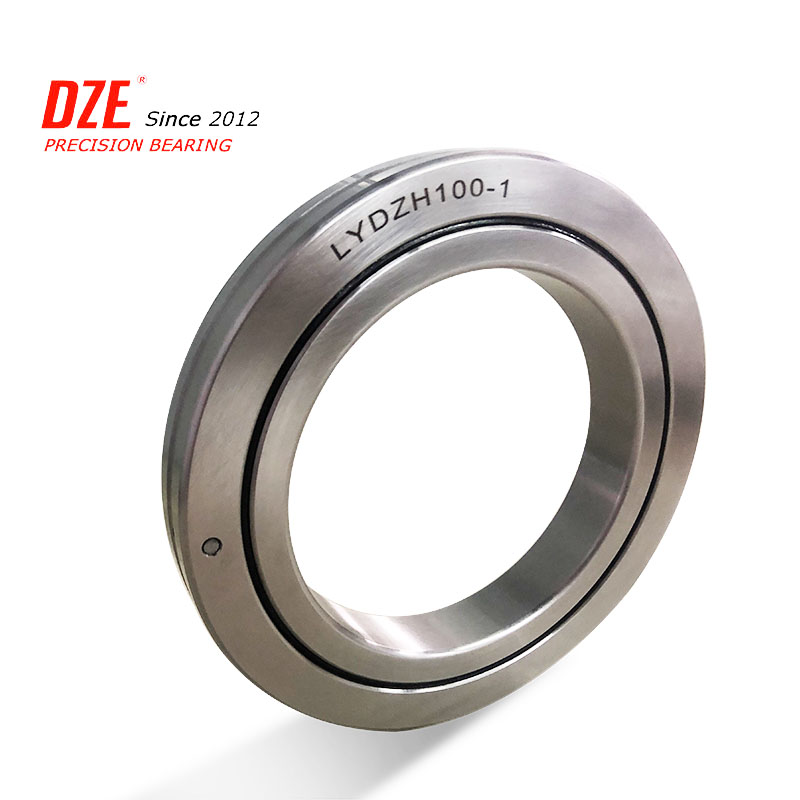

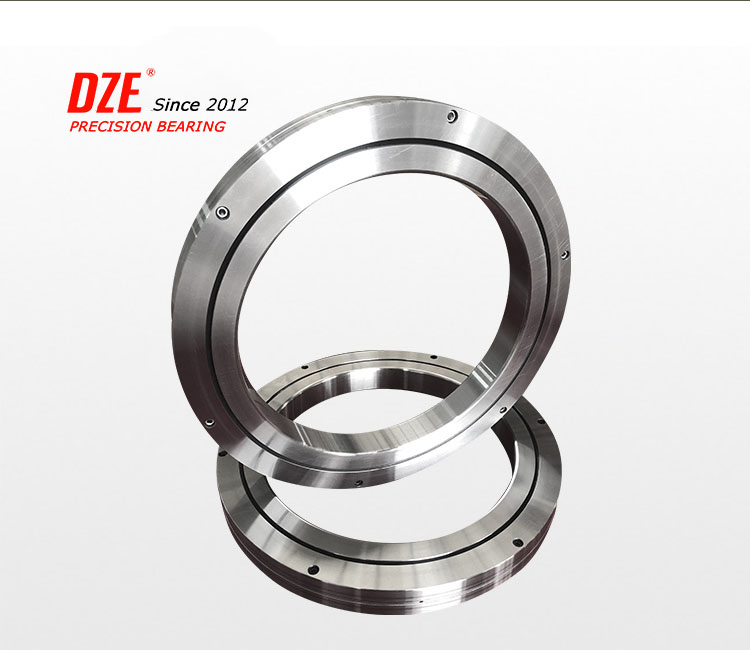

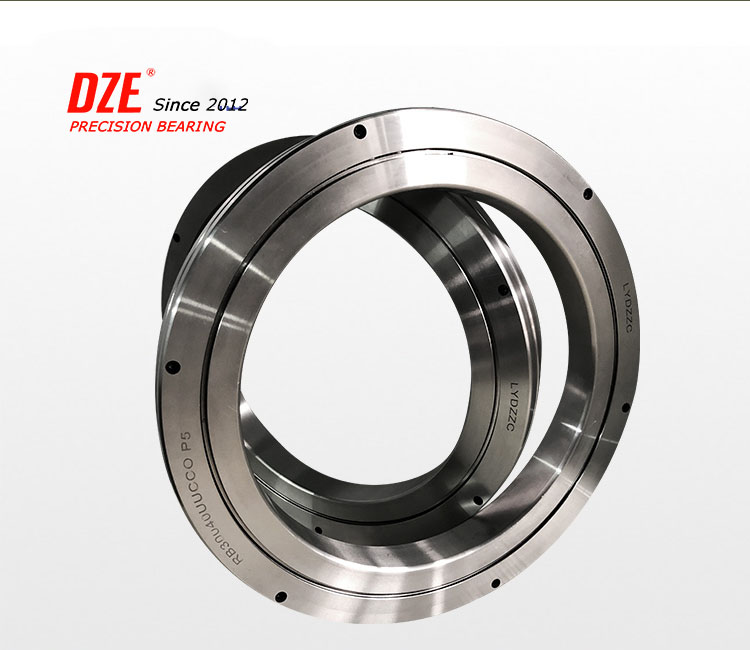

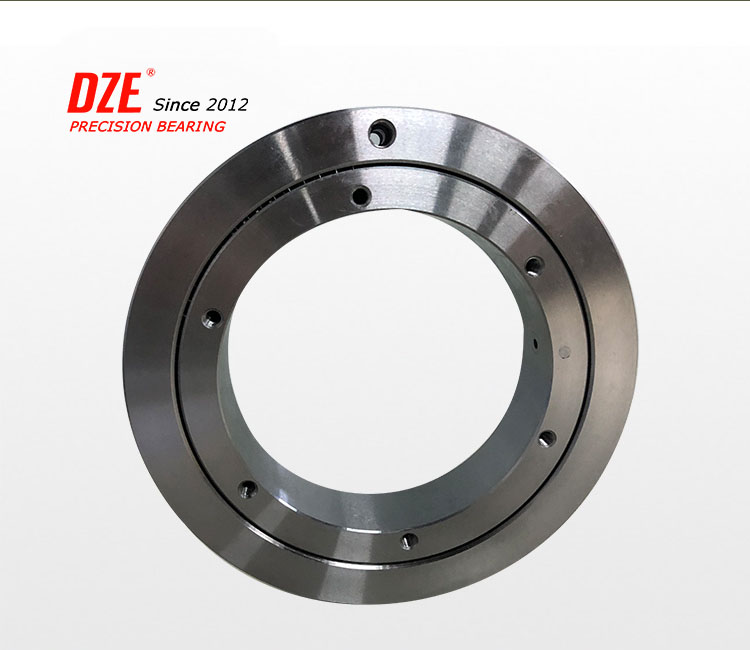

Single Cross Roller Bearing

Single Cross Roller is a high-precision turntable bearing.

DZE was established in 2012, mainly producing precision single cross roller, precision gears, and roller and ball bearing.

XDU Cross Roller Bearing (XSU140 Series); DU Cross Roller Bearing (RU Series Cross Roller Bearing); DZBH series high rigidity cross roller bearings;(CRBH Series roller and ball bearing)

Single Cross Roller Load:

 can withstand combined loads, i.e. axial load, radial load and overturning moment.

Roller and Ball Bearing Easy installation:

bearing guide are usually provided with holes for fixing bolts;

Gear matching:

Cross roller bearing seals, internal, external or gearless;

Good lubrication system:

Lubrication holes and seals for compact and economical arrangement.

Roller bearing identification:

 single-row or double-row ball, single-row cross roller, three-row roller slewing bearing types,

Application:

 widely used in construction machinery, marine equipment, engineering machinery, light industrial machinery, metallurgical machinery, medical machinery, industrial machinery and other industries.

Luoyang DZE Bearing Co., Ltd. is a professional manufacturer of Cross roller bearing and slewing drive devices integrating design, manufacturing and R&D.

• The company covers an area of 50,000 square meters and has three production lines, one for precision P2-level precision bearing customization and the other for P5/P4-level manufacturing and production.

• The testing laboratory is dedicated to the research of product design and development, product application and testing methods.

• More than 100 people engaged in research, production and testing, including 5 senior technicians, 10 intermediate technicians, 20 quality control personnel and more than 110 workers.

• DZE single cross roller packaging

• DZE Precision roller and ball bearing Product Parameters:


• Shaft	Model		Size （mm)				Installation(mm)		Load	Lozd	Weight
  			Inner	outside	hight	r min	da	Da	C  KN	Co  KN	Kg
  			d	D	B
  50	DZBH 5013A	CRBH 5013A UU	50	80	13	0.6	56	74	1.73	2.09	0.29
  60	DZBH 6013A	CRBH 6013A UU	60	90	13	0.6	66	84	1.88	2.43	0.33
  70	DZBH 7013A	CRBH 7013A UU	70	100	13	0.6	76	94	2.01	2.77	0.38
  80	DZBH 8016A	CRBH 8016A UU	80	120	16	0.6	88	112	3.21	4.34	0.74
  90	DZBH 9016A	CRBH 9016A UU	90	130	16	0.6	98	122	3.31	4.68	0.81
  100	DZBH 10020A	CRBH 10020A UU	100	150	20	0.6	110	140	5.09	7.22	1.45
  110	DZBH 11020A	CRBH 11020A UU	110	160	20	0.6	120	150	5.24	7.74	1.56
  120	DZBH 12025A	CRBH 12025A UU	120	180	25	1	132	168	7.34	10.8	2.62
  130	DZBH 13025A	CRBH 13025A UU	130	190	25	1	142	178	7.59	11.5	2.82
  140	DZBH 14025A	CRBH 14025A UU	140	200	25	1	152	188	8.19	13	2.96
  150	CRBH 15025A	CRBH 15025A UU	150	210	25	1	162	198	8.43	13.8	3.16
  200	DZBH 20025A	CRBH 20025A UU	200	260	25	1	212	248	9.23	16.9	4
  250	DZBH 25025A	CRBH 25025A UU	250	310	25	1.5	262	298	10.2	20.7	4.97
