Industrial Crown Pearl - Precision Bearings
Our expertise
DZE understands the driving factors, key issues and key applications of the precision bearing industry. DZE focuses on providing overall solutions and comprehensive services for slewing bearing products. DZE is committed to creating advantages for your success.
DZE solves specific needs of different industries.
We help you reduce total cost of ownership;
We help you reduce planned and unplanned downtime;
We help you reduce maintenance costs;
We help you reduce overall operating costs;
We help you reduce technical support costs for your employees;

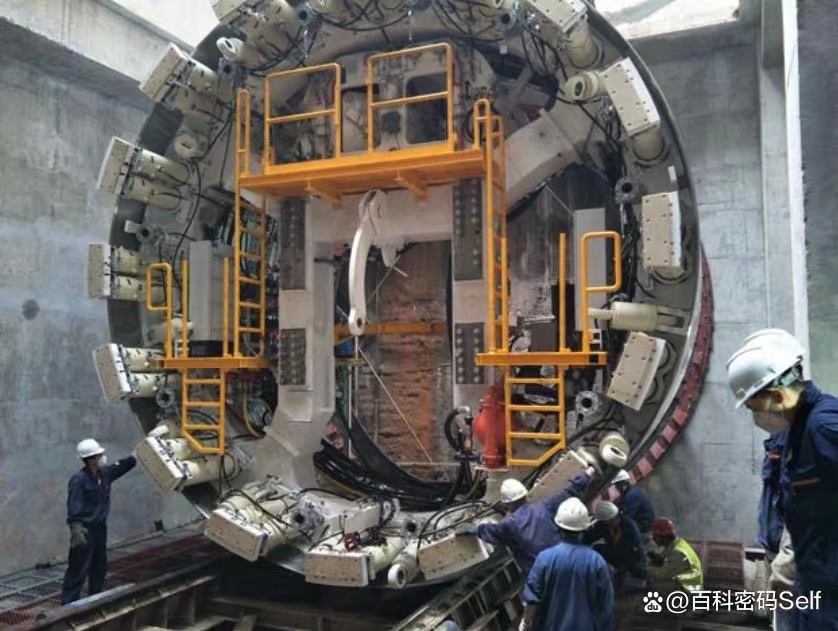

The 5-meter-diameter shield machine main shaft turntable bearing independently developed by DZE also rolled off the production line at the DZE factory on April 12, 2024. This integral shield machine turntable bearing with the largest diameter, heaviest single body and highest load-bearing capacity has created an industry miracle.
This shield machine turntable bearing is of great significance, indicating that DZE has completely conquered and mastered the key core technologies of the shield machine main bearing, from design, materials to manufacturing and testing, and has achieved full coverage of the shield machine main bearing spectrum from small and medium diameters to ultra-large diameters.

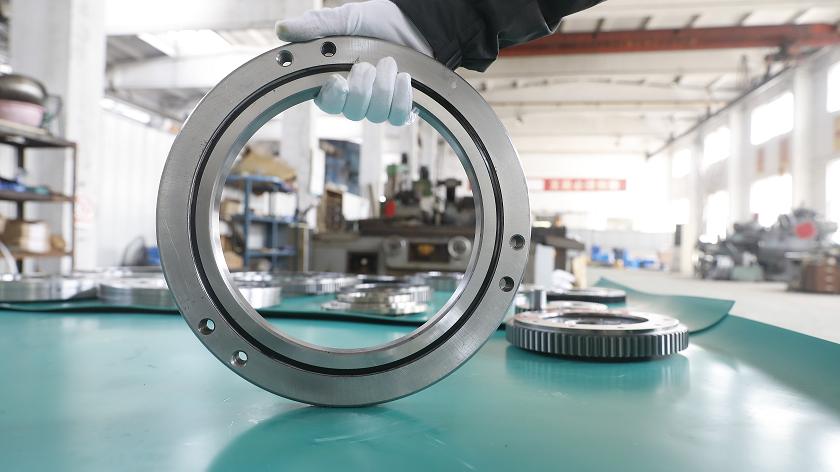

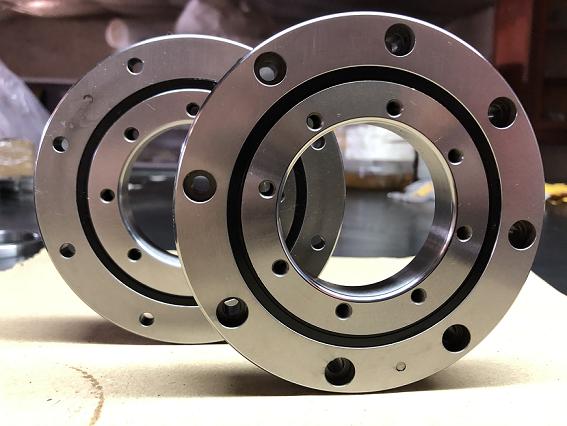

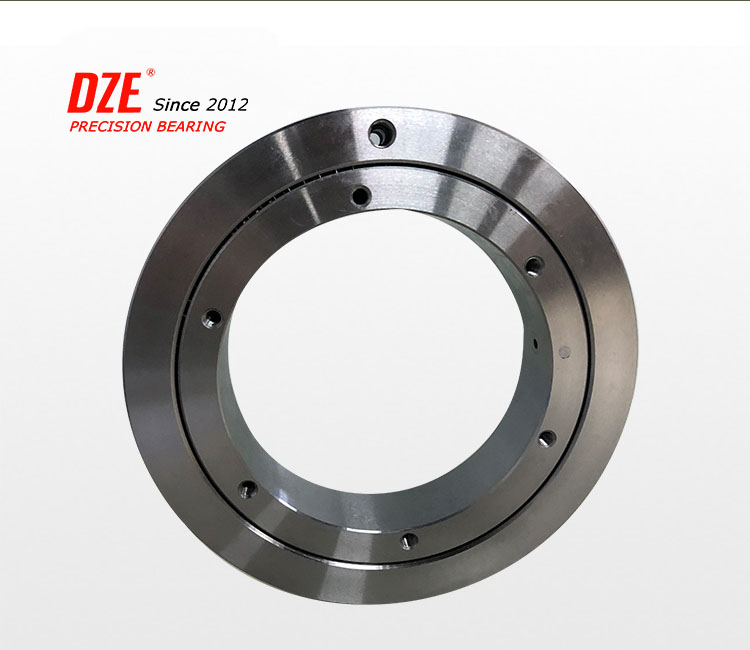

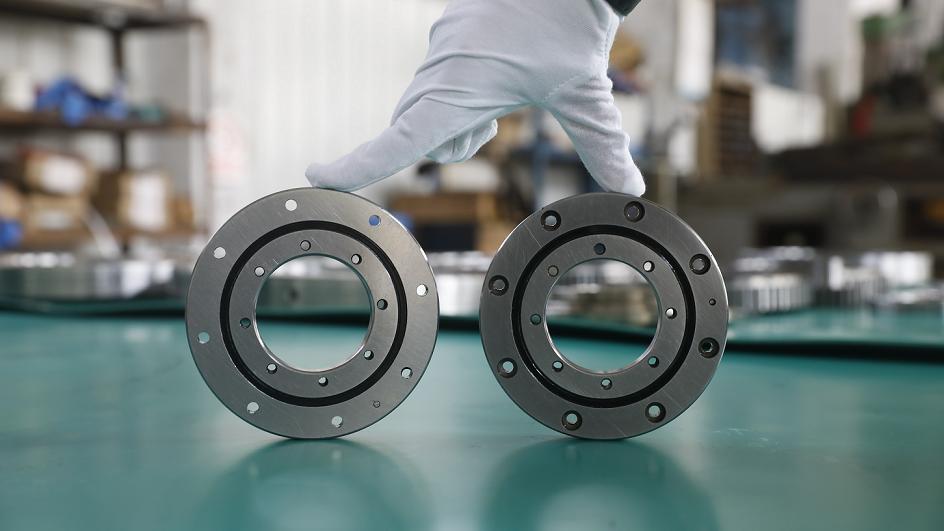

DZE precision bearing product model
外径D | 内径d | 高度H | 重量（KG） | 东轴型号 | 对应型号 | * |
|
|
|
| Pdf格式 |
|
|
110 | 50 | 20 | 0.90 | LYDZ 00-110 | MTO-050 | STD |
135 | 65 | 22 | 1.85 | LYDZ 00-135 | MTO-065 | STD |
160 | 80 | 25 | 2.4 | LYDZ 00-160 | 010.10.120 | STD |
180 | 40 | 35 | 5 | LYDZ 00-180 | 10-16 0100/0-08000 | STD |
200 | 100 | 30 | 4.5 | LYDZ 00-200 | 010.10.150 | STD |
226 | 122 | 34 | 5.8 | LYDZ 00-226 | MTO-122/MTO-122T | STD |
234 | 125 | 35 | 7 | LYDZ 00-234 | STD | |
234 | 124.5 | 35 | 7 | VU140179 | STD | |
249 | 143 | 34 | 6.9 | LYDZ 00-249 | MTO-143/MTO-143T | STD |
280 | 140 | 35 | 10 | LYDZ 00-280-L | 10-16 0200/0-08010 | STD |
280 | 120 | 60 | 20.5 | LYDZ 00-280 | 010.20.200 | STD |
290 | 150 | 41.5 | 14 | LYDZ 00-290-L | STD | |
290 | 200 | 24 | 5.4 | LYDZ 00-290 | VU130225 | STD |
300 | 145 | 50 | 17 | LYDZ 00-300 | MTO-145/MTO-145T | STD |
302 | 138 | 46 | 16 | LYDZ 00-302 | VU200220 | STD |
304 | 144 | 60 | 23 | LYDZ 00-304 | 010.20.224 | STD |
310 | 170 | 46 | 15 | LYDZ 00-310 | MTO-170/MTO-170T | STD |
329 | 190 | 45 | 17 | LYDZ 00-329 | STD | |
330 | 170 | 60 | 28 | LYDZ 00-330 | 010.20.250 | STD |
332 | 189 | 45 | 17 | LYDZ 00-332 | RKS.951145101001 | STD |
360 | 200 | 60 | 28.4 | LYDZ 00-360 | 010.20.280 | STD |
365 | 210 | 40 | 17.5 | LYDZ 00-365 | MTO-210/MTO-210T | STD |
380 | 240 | 35 | 14 | LYDZ 00-380 | 10-16 0300/0 08023 | STD |
380 | 270 | 35 | 12 | LYDZ 00-380-L | VU140325 | STD |
386 | 242 | 56 | 21 | LYDZ 00-386 | 10 20-0311 | STD |
VSU200311 | STD |
390 | 230 | 65 | 28 | LYDZ 00-390 | 10-22 0308 | STD |
418 | 204 | 56 | 19 | LYDZ 00-418-L | 90-20 0311 | SL |
VLU200311 | ||||||
420 | 265 | 50 | 25 | LYDZ 00-420 | MTO-265/MTO-265T |
|
440 | 265 | 50 | 29 | LYDZ 00-440 | STD | |
455 | 265 | 71 | 45 | LYDZ 00-455 | STD | |
471 | 285 | 63 | 41 | LYDZ 00-471 | 10-25 0371 |
|
475 | 335 | 45 | 30 | LYDZ 00-475 | STD | |
480 | 340 | 35 | 23 | LYDZ 00-480 | 10-16 0400 |
|
485 | 275 | 55 | 43 | LYDZ 00-485 | 10-25 0380 |
|
486 | 342 | 56 | 29 | LYDZ 00-486 | 33 0411 01 | SLBP |
VSU200414 |
| |||||
RKS.060.20.414 |
| |||||
518 | 304 | 56 | 23 | LYDZ 00-518 | 23 0411 01 | 轻型 |
VLU200414 |
| |||||
RKS.23.0411 |
| |||||
520 | 324 | 60 | 48 | LYDZ 00-520 | MTO-324T |
|
555 | 355 | 63 | 53 | LYDZ 00-555 | VSU250455 |
|
577 | 370 | 75 | 68 | LYDZ 00-577 | 10-32 0474 |
|
580 | 440 | 35 | 24 | LYDZ 00-580 | 10-16 0500 |
|
616 | 472 | 56 | 38 | LYDZ 00-616 | 33 0541 01 | SLBP |
VSU200544 |
| |||||
RKS.060.20.0544 |
| |||||
626 | 424 | 72 | 70 | LYDZ 00-626 | STD | |
648 | 434 | 56 | 34 | LYDZ 00-648 | 23 0541 01 | 轻型 |
| ||||||
RKS.23.0544 |
| |||||
655 | 455 | 63 | 65 | LYDZ 00-655 | VSU250555 |
|
712 | 487 | 72 | 91 | LYDZ 00-712 | STD | |
716 | 572 | 56 | 45 | LYDZ 00-716 | 33 0641 01 | SLBP |
VSU200644 |
| |||||
RKS.060.20.0644 |
| |||||
748 | 534 | 56 | 40 | LYDZ 00-748 | 23 0641 01 | 轻型 |
VLU200644 | ||||||
RKS.23.0641 | ||||||
755 | 555 | 63 | 76 | LYDZ 00-755 | VSU250655 |
|
800 | 560 | 82 | 120 | LYDZ 00-800 |
|
|
816 | 672 | 56 | 52 | LYDZ 00-816-L | 33 0741 01 | SLBP |
VSU200744 | ||||||
RKS.060.20.0744 | ||||||
848 | 634 | 56 | 46 | LYDZ 00-848 | 23 0741 01 | 轻型 |
RKS.23.0741 | ||||||
900 | 670 | 86 | 148 | LYDZ 00-900 | STD | |
916 | 772 | 56 | 60 | LYDZ 00-916 | 33 0841 01 | SLBP |
916 | 772 | 56 | 60 | VSU200844 |
| |
916 | 772 | 56 | 60 | RKS.060.20.0844 |
| |
948 | 734 | 56 | 52 | LYDZ 00-948 | 23 0841 01 | 轻型 |
948 | 734 | 56 | 52 |
| ||
948 | 734 | 56 | 52 | RKS.23.0844 |
| |
1016 | 872 | 56 | 67 | LYDZ 00-1016 | 33 0941 01 | SLBP |
1016 | 872 | 56 | 67 | VSU200944 | ||
1016 | 872 | 56 | 67 | RKS.060.20.0944 | ||
1048 | 834 | 56 | 58 | LYDZ 00-1048 | 23 0941 01 | 轻型 |
1048 | 834 | 56 | 58 | |||
1048 | 834 | 56 | 58 | RKS.23.0944 | ||
1100 | 805 | 90 | 131 | LYDZ 00-1100 | VLU300955 |
|
1130 | 845 | 100 | 271 | LYDZ 00-1130 | STD | |
1166 | 1022 | 56 | 78 | LYDZ 00-1094 | 33 1091 01 | SLBP |
1166 | 1022 | 56 | 78 | VSU201094 | ||
1166 | 1022 | 56 | 78 | RKS.060.20.1094 | ||
1198 | 984 | 56 | 67 | LYDZ 00-1198 | 轻型 | |
1198 | 984 | 56 | 67 | RKS.23.1094 | ||
1198 | 984 | 56 | 67 | 23 1091 01 |
* STD | Standard |
* SL | Light Serie |
* SLBP | Light Serie Solid Section Bearing |
