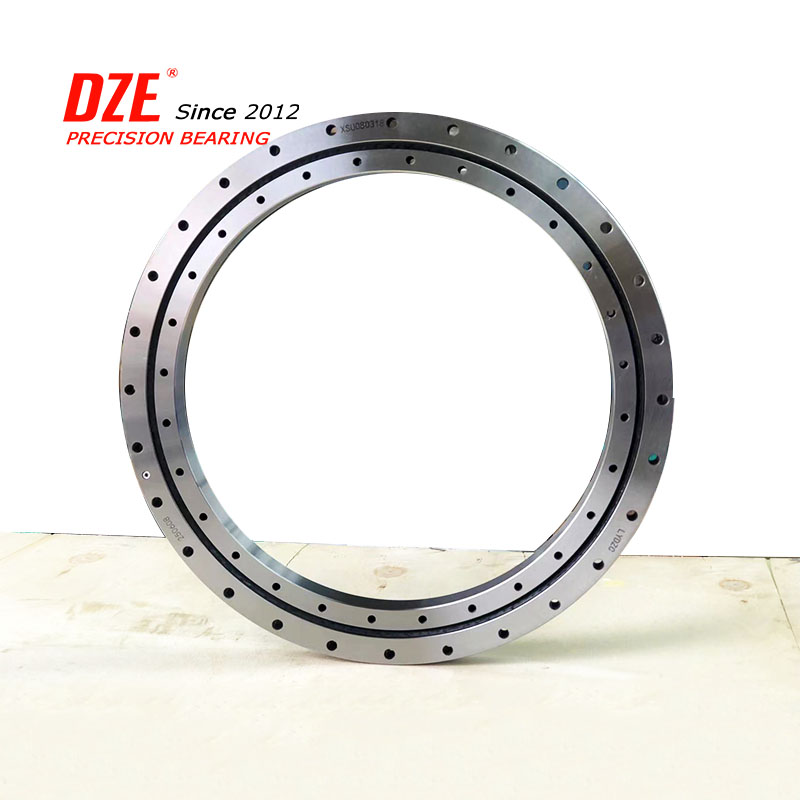

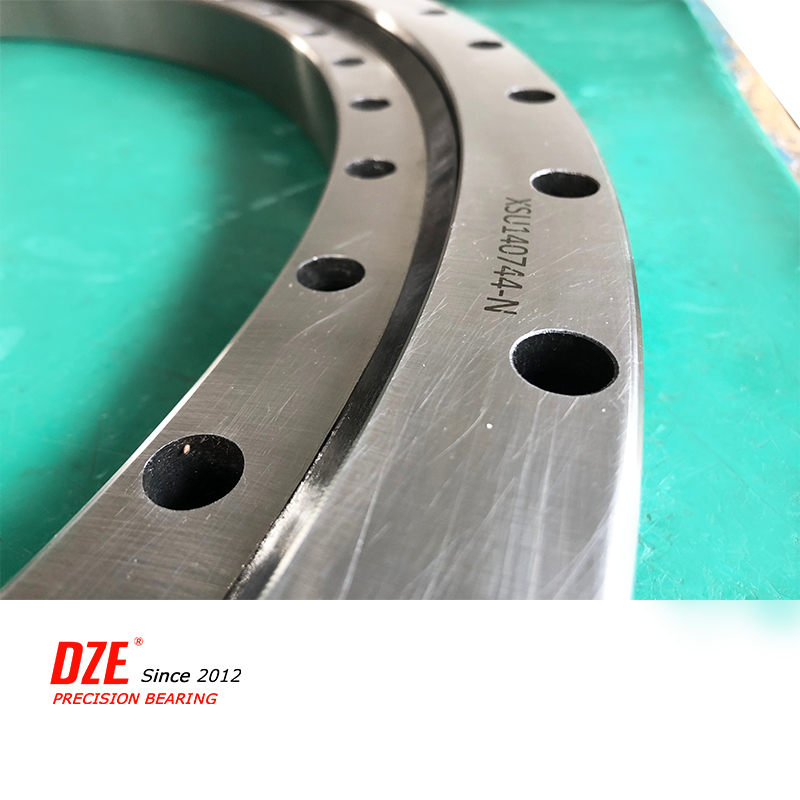

INA VSU200644 slewing bearing price: $330/set

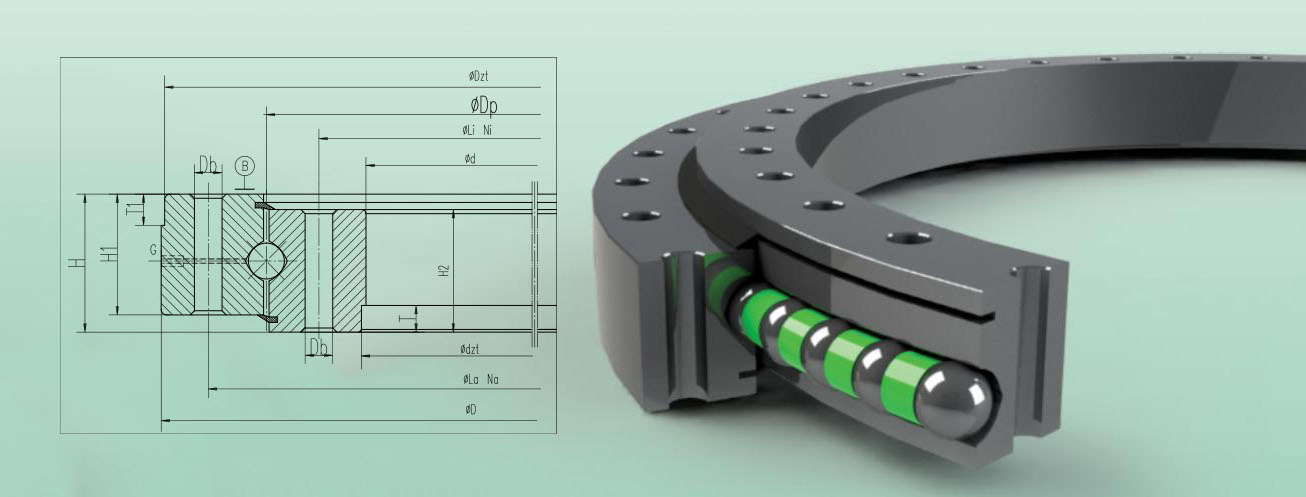

VSU200644 Slewing Bearing Parameter
| Model No. | INA Slewing Ring VSU200644 |
| Bearing type | VSU200644 Slewing Bearing |
| d | 572mm |
| D | 716 mm |
| H | 56 mm |
| Weight | 46.41kg |
| Packaging | Paper,foam,carton/wooden cases (standard export packaging) |
| Precision level | P5,P4,p2 |
| Application | VSU200644is used for CNC machine tool,Precision rotary table,IC equipments,robots joints etc. |
| Origin place | Luoyang,China |
| Export area | Europe,Asia,America etc. |
| Transpor | By sea or by air |
| Service | As per your request |
| Quality warranty | 2 years at least |
DZE Manufacturing-INA VSU200 series four-point contact ball bearings, slewing bearings, gearless turntable bearings
Double-layer seals;
High-temperature grease;
Matching pinion;
Customization supported;

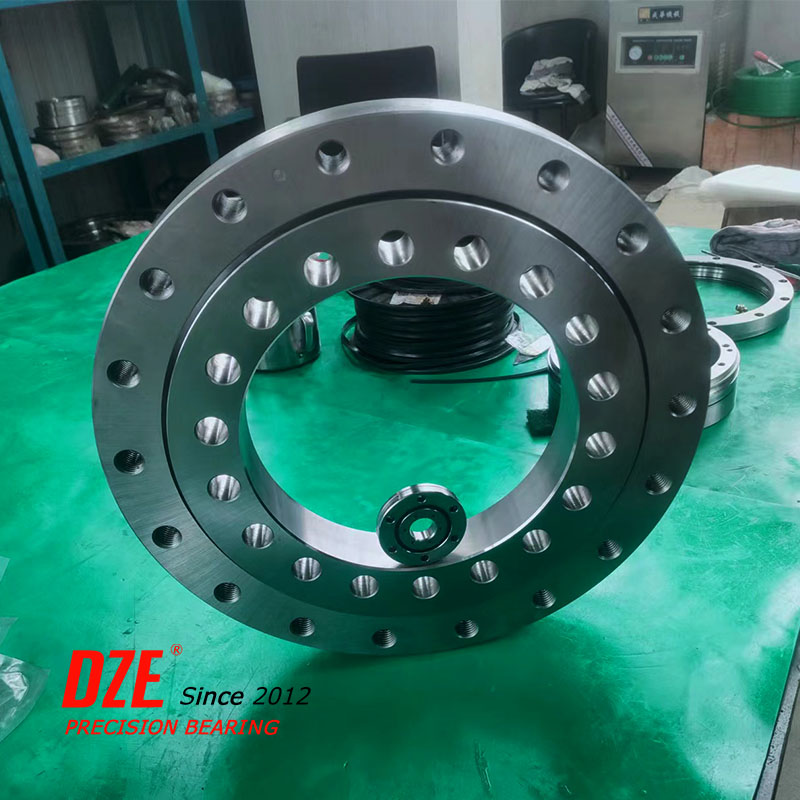

Slewing Bearing Factory-DZE Bearing
INA VSU200414| 342mmx486mmx56mm;Weight:28KG
In stock
Contact us via WhatsApp: +8613700810892
Brand: DZE | INA
Inner Diameter: 342 mm;
Outer Diameter: 486 mm;
Overall Height: 56 mm;
Load Capacity (Ca): 137 kN;
Load Capacity (Coa): 660 kN
China bearing factory-VSU series bearings
INA VSU200544| 472mmx616mmx56mm;Weight:38.41KG
Brand: DZE | INA
Inner Diameter: 472 mm;
Outer Diameter: 616 mm;
Overall Height: 56 mm;
Load Capacity (Ca): 152 kN;
Load Capacity (Coa): 870 kN
China bearing factory-VSU series bearings
INA VSU200644| 572mmx716mmx56mm;Weight:38.41KG
Brand: DZE | INA VSU200644-N
Inner Diameter: 572 mm;
Outer Diameter: 716 mm;
Overall Height: 56 mm;
Load Capacity (Ca): 172 kN;
Load Capacity (Coa): 1160 kN

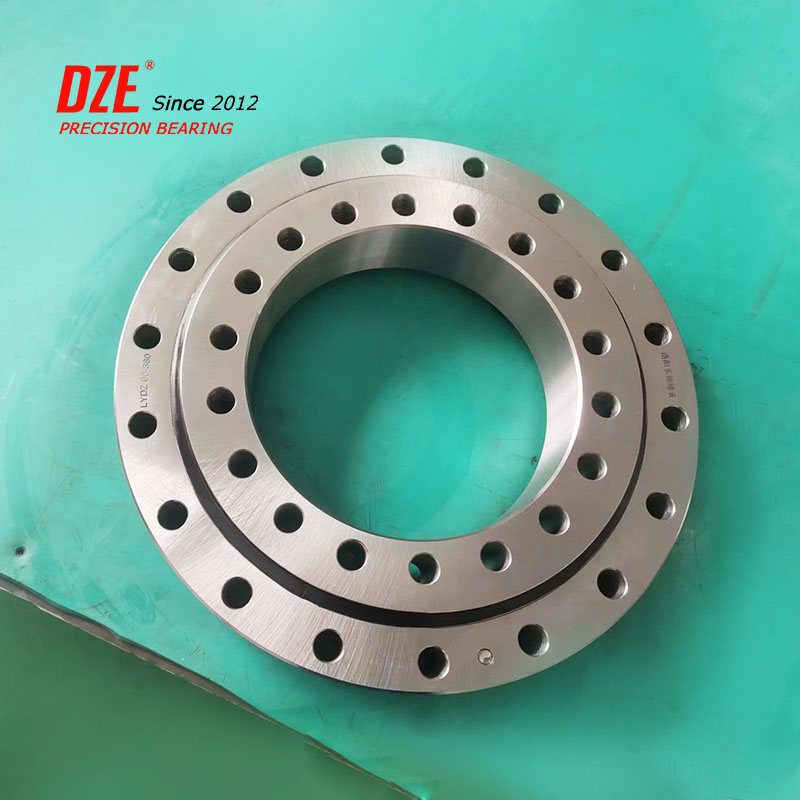

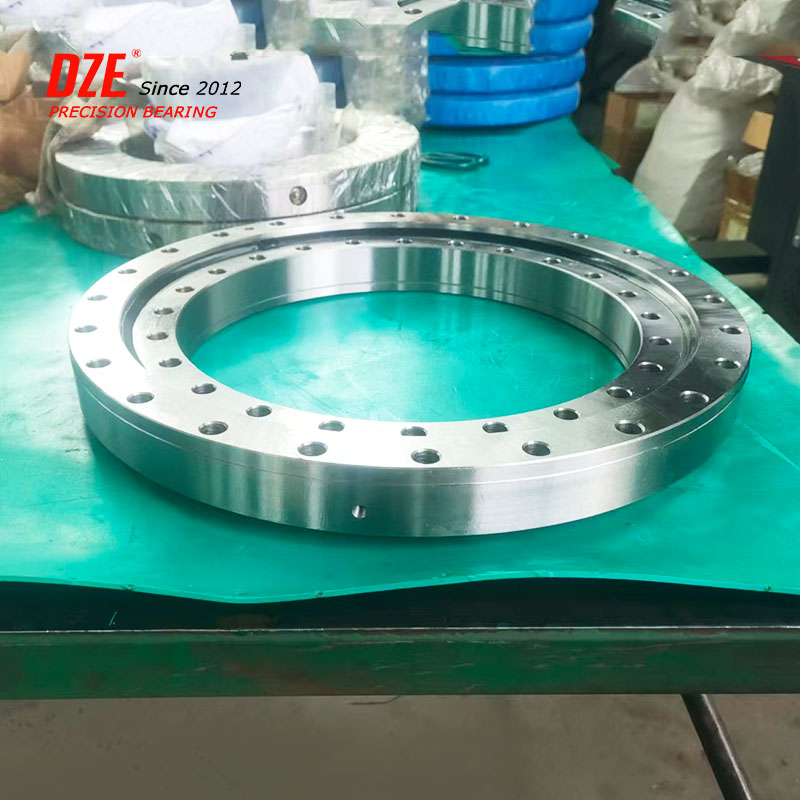

INA Slewing Ring-VSU series bearings
INA VSU200744| 672mmx816mmx56mm;Weight:53.06KG
Brand: DZE | INA Slewing Ring VSU200744-N
Inner Diameter: 672 mm;
Outer Diameter: 816 mm;
Overall Height: 56 mm;
Load Capacity (Ca): 185 kN;
Load Capacity (Coa): 1350 kN
Luoyang east shaft four-point contact bearing VU series bearing product model:
VU140179 VU200220 VU130225 VU200260 VU140325
VU250380 VU200405 VU250433 VU300574 VU360680
VS series four-point contact bearings.
VSA250755-N VSA250855-N VSA250955-N VSA251055-N VSI250755-N VSI250855-N VSI250955-N
VSI251055-N VSU250755-N VSU250855-N VSU250955-N
VSU251055-N VSA200414-N VSA200544-N VSA200644-N
VSA200744-N VSA200844-N VSA200944-NVSA201094-N
VSI200414-N VSI200544-N VSI200644-N VSI200744-N
VSI200844-N VSI200944-N VSI201094-N VSU200414-N VSU200544-N VSU200644-N VSU200744-N VSU200844-N VSU200944-N VSU201094-N XSI 140414-N XSI 140544-N XSI 140644-N
XSI 140744-N XSI 140844-N XSI 140944-N XSI 141094-N VA series four-point contact bearings. VA160235-N VA160302-N VA250309-N
1. We can manufacture the bearings you need according to the drawings provided by you.
You can also design, develop and manufacture bearings that meet your requirements according to specific working conditions.
2. We can provide you with bearing improvement and optimization services, whether you buy your bearings from us or not.
3. We can provide you with guidance on the installation and maintenance of bearings.
DZE precision bearing talents have been vigorously developed. There are 15 senior engineers and 5 postgraduates. The company has cooperated with Luoyang LYC Bearing Co., Ltd. and Luoyang ZYS Bearing Research Institute for many years to jointly formulate industry standards and national technical standards, which has made a significant contribution to the development of the company.
DZE certifications are 3.1, 3.2, ABS, CCS. The company team has technology and rich experience in the bearing industry. With a global network, we can solve any bearing problem for you. DZE bearings are a perfect replacement for the most common and well-known brands.
DZE technical service content:
Provide technical support, solution customization, and design of assembly drawings before sales;
During sales: DZE provides strict inspection and record keeping for each process;
After-sales service: Solve all your needs and technical problems 24 hours a day, online contact: Whats app: +8613700810892
