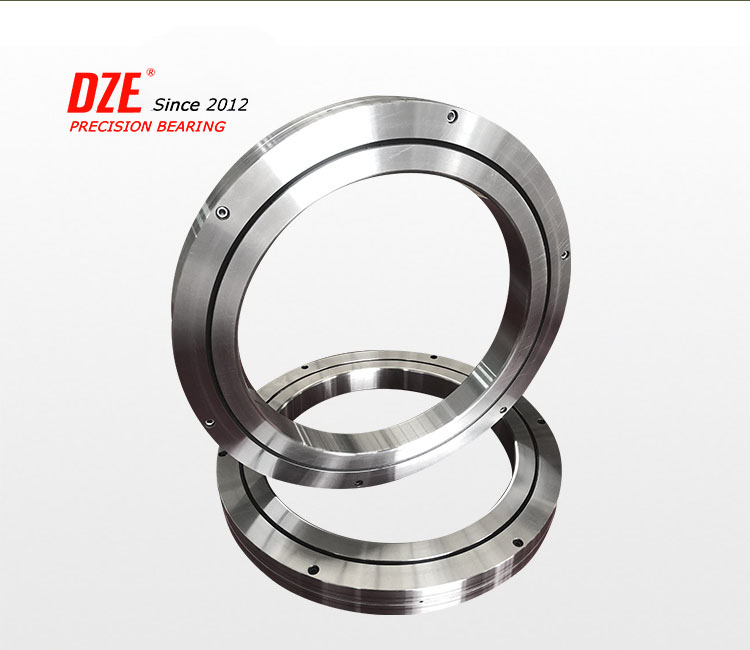

1.Structure: The inner and outer rings of the cross roller bearing are an integral structure，If you need to know types of bearing and toothed slewing ring
2.Dimensions: Inner diameter: 130-874mm Outer diameter: 205-1014mm Width: 25.4-56mm
3.Features: The inner and outer rings of the highest quality bearings are suitable for flange installation, sealed on both sides, grease lubrication, preloaded, inner and outer diameter centering, and highest quality bearings can be directly installed on the adjacent structure by screws.DZE is a global top 10 bearing factory.
4.Precision: P6, P0, P5, P4, P2
5.Material: Gcr15, Gcr15SiMn
6.Cage: Brass, Nylon
7.Application: Industrial Robot/Crane/Excavator
highest quality bearings: Ensures accurate motion and positioning, which is critical for applications requiring fine control.We can provide you with any ttypes of bearing.
Load capacity: Can withstand large radial and axial loads, improving durability and performance.
Stiffness: Provides excellent stability, reduces vibration and ensures reliable operation.
Versatility: Suitable for a wide range of applications from aerospace to robotics and medical devices.
08-0220-05 Cross Roller Bearing
08-0220-04 Cross Roller Bearing
08-0307-00 Cross Roller Bearing
Each set of DZE precision bearings is coated with anti-rust oil before leaving the factory, and EP2 grease or 7018 aviation grease is added inside the bearings.
DZE bearings are generally packaged in three layers, the first layer: waterproof plastic film, the second layer: kraft paper, and the third layer: packaging bags. Our packaging bags are divided into three types: blue, white, and red. The bearings are marked with the "LYDZC" DZE bearing factory logo; in addition, in order to prevent the bearings from being bumped, we use wooden boxes for all bearings, which greatly reduces the damage to the bearings and bearing packaging.
For RU cross roller bearings, RB cross roller bearings, SX cross roller bearings and harmonic reducer bearings, we use vacuum packaging and add paper boxes on the outside.
DZE precision bearing talents have been vigorously developed. There are 15 senior engineers and 5 postgraduates. The company has cooperated with Luoyang LYC Bearing Co., Ltd. and Luoyang ZYS Bearing Research Institute for many years to jointly formulate industry standards and national technical standards, which has made a significant contribution to the development of the company.
DZE certifications are 3.1, 3.2, ABS, CCS. The company team has technology and rich experience in the bearing industry. With a global network, we can solve any bearing problem for you. DZE bearings are a perfect replacement for the most common and well-known brands.
DZE technical service content:
Provide technical support, solution customization, and design of assembly drawings before sales;
During sales: DZE provides strict inspection and record keeping for each process;
After-sales service: Solve all your needs and technical problems 24 hours a day, online contact: Whats app: +8613700810892
