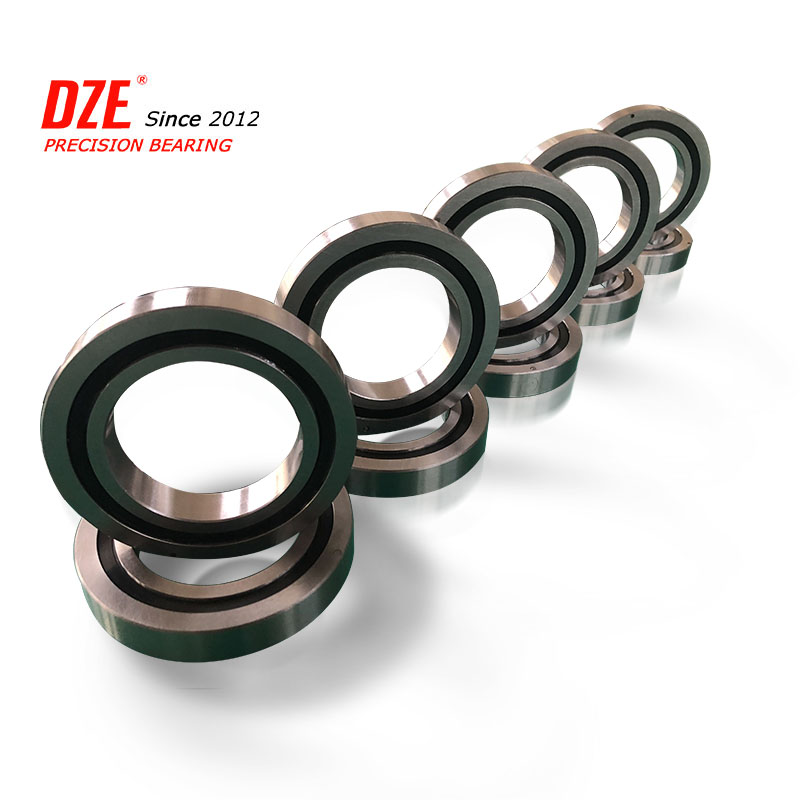

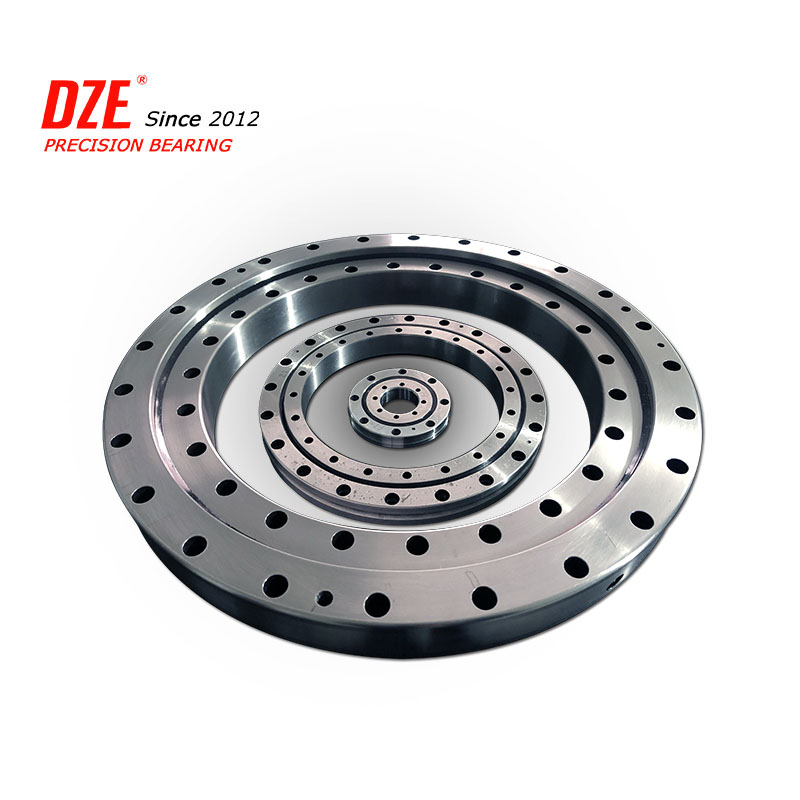

DZE is a bearing factory,Our crossed roller bearing manufacturers meet your requirements. Our raceway grinding process along with the systematic pairing and preloading of our products guarantees the reliability and precision of our standard and custom-made slewing rings,single row slewing bearing:
Detailed calculations of raceways and gears
Finite Element Analysis (FEA)
Reduced prototyping time
Standard products available from stock
Certifications: DNV, ABS, Bureau Veritas, LR, Rina…
Our 6 steps process to seclect a crossed roller bearing,DZE is a bearing factory.
Estimate loads ;
Pre-select the slewing ring range according to the determining criteria
Verify the raceway’s static capacity and fasteners according to slewing ring range
Check rotation speed
Check forces on the gear
Validate the slewing ring’s dimensional characteristics
D | d | H | Weight | M | Z | DZE Model | Model |
|
|
|
|
|
|
|
|
|
|
70 | 30 | 14 | 0.37 |
|
| LYDZ 10-070 | XV 30 |
|
85 | 40 | 14 | 0.44 |
|
| LYDZ 10-085 | XV 40 |
|
100 | 50 | 16 | 0.65 |
|
| LYDZ 10-100 | XV 50 |
|
110 | 60 | 16 | 0.75 |
|
| LYDZ 10-110 | XV 60 |
|
120 | 70 | 16 | 0.84 |
|
| LYDZ 10-120 | XV 70 |
|
135 | 80 | 18 | 1.18 |
|
| LYDZ 10-135 | XV 80 |
|
145 | 90 | 18 | 1.29 |
|
| LYDZ 10-145 | XV 90 |
|
170 | 100 | 22 | 2.31 |
|
| LYDZ 10-170 | XV 100 |
|
180 | 110 | 22 | 2.48 |
|
| LYDZ 10-180 | XV 110 |
|
112 | 40 | 22 | 1.4 |
|
| LYDZ 10-112 | XU 050077 |
|
140 | 57 | 26 | 2.4 |
|
| LYDZ 10-140 | XU 060094 |
|
145.79 | 76.2 | 15.87 | 1.2 |
|
| LYDZ 10-145 | XU 060111 |
|
170 | 69 | 30 | 4 |
|
| LYDZ 10-170 | XU 080120 |
|
196.85 | 101.6 | 22.22 | 3.6 |
|
| LYDZ 10-196 | XU 080149 |
|
205 | 130 | 25.4 | 3.3 |
|
| LYDZ 10-205 | XSU 080168 |
|
225 | 150 | 25.4 | 3.7 |
|
| LYDZ 10-225 | XSU 080188 |
|
234 | 124.5 | 35 | 7 |
|
| LYDZ 10-234 | XU 120179 |
|
255 | 180 | 25.4 | 4.3 |
|
| LYDZ 10-255 | XSU 080218 |
|
295 | 220 | 25.4 | 5.1 |
|
| LYDZ 10-295 | XSU 080258 |
|
300 | 140 | 36 | 12 |
|
| LYDZ 10-300 | XU 120222 |
|
300 | 140 | 52 | 16 |
|
| LYDZ 10-300 | 08-0220-05 |
|
300 | 130 | 36 | 13.6 |
|
| LYDZ 10-300 | 16318001 |
|
311 | 215.9 | 25.4 | 6.9 |
|
| LYDZ 10-311 | XU 080264 |
|
329 | 191 | 46 | 16 |
|
| LYDZ 10-329 | XU 160260 |
|
350 | 190 | 52 | 21 |
|
| LYDZ 10-350 | 08-0270-04 |
|
355 | 280 | 25.4 | 6.3 |
|
| LYDZ 10-355 | XSU 080318 |
|
403.5 | 230 | 55 | 29.4 |
|
| LYDZ 10-403.5 | 16319001 |
|
403.5 | 233 | 55 | 25 |
|
| LYDZ 10-403.5 | RKS.921155203001 |
|
403.5 | 234 | 55 | 26 |
|
| LYDZ 10-403.5 | 08-0307-00 |
|
435 | 360 | 25.4 | 7.8 |
|
| LYDZ 10-435 | XSU 080398 |
|
440 | 240 | 60 | 38 |
|
| LYDZ 10-440 | 08-0340-04 |
|
474 | 336 | 46 | 25 |
|
| LYDZ 10-474 | XU 160405 |
|
474 | 336 | 46 | 25 |
|
| LYDZ 10-474 | 08-0405-05 |
|
480 | 380 | 26 | 12 |
|
| LYDZ 10-480 | XU 080430 |
|
484 | 344 | 56 | 28 |
|
| LYDZ 10-484 | RKS.160.14.0414 |
|
484 | 342 | 56 | 28 |
|
| LYDZ 10-484 | NR1.14.0414.200-1PPN |
|
484 | 344 | 56 | 28 |
|
| LYDZ 10-484 | NR1.14.0414.201-3PPN |
|
484 | 344 | 56 | 28 |
|
| LYDZ 10-484 | XSU 140414 |
|
500 | 305 | 75 | 54 |
|
| LYDZ 10-500 | 08-0400-00 |
|
589 | 383 | 75 | 65 |
|
| LYDZ 10-589 | 08-0475-08 |
|
589.5 | 378 | 75 | 64 |
|
| LYDZ 10-589 | RKS.121405101002 |
|
614 | 474 | 56 | 38 |
|
| LYDZ 10-614 | NR1.14.0544.201-3PPN |
|
614 | 474 | 56 | 38 |
|
| LYDZ 10-614 | XSU 140544 |
|
614 | 474 | 56 | 38 |
|
| LYDZ 10-614 | RKS.160.14.0544 |
|
616 | 472 | 56 | 38 |
|
| LYDZ 10-616 | NR1.14.0544.200-1PPN |
|
646 | 384 | 86 | 115 |
|
| LYDZ 10-646 | XU 300515 |
|
695 | 477 | 77 | 83.8 |
|
| LYDZ 10-695 | 16320001 |
|
695 | 477 | 77 | 84 |
|
| LYDZ 10-695 | RKS.121395101002 |
|
700 | 479 | 77 | 90 |
|
| LYDZ 10-700 | 08-0574-08 |
|
714 | 574 | 56 | 44 |
|
| LYDZ 10-714 | NR1.14.0644.201-3PPN |
|
714 | 574 | 56 | 44 |
|
| LYDZ 10-714 | XSU 140644 |
|
714 | 574 | 56 | 44 |
|
| LYDZ 10-714 | RKS.160.14.0644 |
|
716 | 572 | 56 | 44 |
|
| LYDZ 10-716 | NR1.14.0644.200-1PPN |
|
814 | 674 | 56 | 52 |
|
| LYDZ 10-814 | NR1.14.0744.201-3PPN |
|
814 | 674 | 56 | 52 |
|
| LYDZ 10-814 | XSU 140744 |
|
814 | 674 | 56 | 52 |
|
| LYDZ 10-814 | RKS.160.14.0744 |
|
816 | 573 | 90 | 135 |
|
| LYDZ 10-816 | 08-0675-00 |
|
816 | 672 | 56 | 52 |
|
| LYDZ 10-816 | NR1.14.0744.200-1PPN |
|
816 | 571 | 90 | 125 |
|
| LYDZ 10-816 | RKS.122295101002 |
|
897 | 676.2 | 75 | 83.8 |
|
| LYDZ 10-897 | 16321001 |
|
914 | 774 | 56 | 60 |
|
| LYDZ 10-914 | NR1.14.0844.201-3PPN |
|
914 | 774 | 56 | 60 |
|
| LYDZ 10-914 | XSU 140844 |
|
914 | 774 | 56 | 60 |
|
| LYDZ 10-914 | RKS.160.14.0844 |
|
916 | 772 | 56 | 60 |
|
| LYDZ 10-916 | NR1.14.0844.200-1PPN |
|
979 | 715 | 100 | 193 |
|
| LYDZ 10-979 | RKS.223475101001 |
|
979 | 717 | 100 | 270 |
|
| LYDZ 10-979 | 08-0823-08 |
|
1014 | 874 | 56 | 67 |
|
| LYDZ 10-1014 | NR1.14.0944.201-3PPN |
|
1014 | 874 | 56 | 67 |
|
| LYDZ 10-1014 | XSU 140944 |
|
1014 | 874 | 56 | 67 |
|
| LYDZ 10-1014 | RKS.160.14.0944 |
|
1016 | 872 | 56 | 67 |
|
| LYDZ 10-1016 | NR1.14.0944.200-1PPN |
|
1144 | 870 | 85 | 230 |
|
| LYDZ 10-1144 | RKS.222605101001 |
|
1144 | 869 | 100 | 248 |
|
| LYDZ 10-1144 | 08-0980-06 |
|
1164 | 1024 | 56 | 77 |
|
| LYDZ 10-1164 | NR1.14.1094.201-3PPN |
|
1164 | 1024 | 56 | 77 |
|
| LYDZ 10-1164 | XSU 141094 |
|
1164 | 1024 | 56 | 77 |
|
| LYDZ 10-1164 | RKS.160.14.1094 |
|
1166 | 1022 | 56 | 77 |
|
| LYDZ 10-1166 | NR1.14.1094.200-1PPN |
|
1175 | 870 | 108 | 346.5 |
|
| LYDZ 10-1175 | 16322001 |
|
1289 | 1119 | 68 | 124 |
|
| LYDZ 10-1289 | NR1.16.1204.400-1PPN |
|
1289 | 1119 | 68 | 124 |
|
| LYDZ 10-1289 | RKS.160.16.1204 |
|
1399 | 1229 | 68 | 135 |
|
| LYDZ 10-1399 | NR1.16.1314.400-1PPN |
|
1399 | 1229 | 68 | 135 |
|
| LYDZ 10-1399 | RKS.160.16.1314 |
|
1432 | 1188 | 97 | 322 |
|
| LYDZ 10-1432 | 16323001 |
|
1509 | 1339 | 68 | 146 |
|
| LYDZ 10-1509 | NR1.16.1424.400-1PPN |
|
1509 | 1339 | 68 | 146 |
|
| LYDZ 10-1509 | RKS.160.16.1424 |
|
1619 | 1449 | 68 | 158 |
|
| LYDZ 10-1619 | NR1.16.1534.400-1PPN |
|
1619 | 1449 | 68 | 158 |
|
| LYDZ 10-1619 | RKS.160.16.1534 |
|
1752 | 1536 | 68 | 214 |
|
| LYDZ 10-1752 | NR1.16.1644.400-1PPN |
|
1752 | 1536 | 68 | 214 |
|
| LYDZ 10-1752 | RKS.160.16.1644 |
|
1862 | 1646 | 68 | 228 |
|
| LYDZ 10-1862 | NR1.16.1754.400-1PPN |
|
1862 | 1646 | 68 | 228 |
|
| LYDZ 10-1862 | RKS.160.16.1754 |
|
2012 | 1906 | 68 | 248 |
|
| LYDZ 10-2012 | NR1.20.1904.400-1PPN |
|
2012 | 1906 | 68 | 248 |
|
| LYDZ 10-2012 | RKS.160.20.1904 |
|
2159 | 1879.6 | 95.25 | 539 |
|
| LYDZ 10-2159 | 16324001 |
DZE is the expert in crossed roller bearing, and will provide technical recommendations and calculations. Our engineers will provide the guidance you need to find the most suitable solution for your application. Our sales team will assist you throughout your project to provide reliable advice on how to optimise your purchase and performance.
