DZE was founded in 2012. We are represented in around 80 countries, with more than ten of thousands of ball bearings modles
Our products include ball bearings、slewing ring、Cross roller bearing.In fact, wherever there is sports, there is DZE. We are an important part of work and life anywhere in the world.

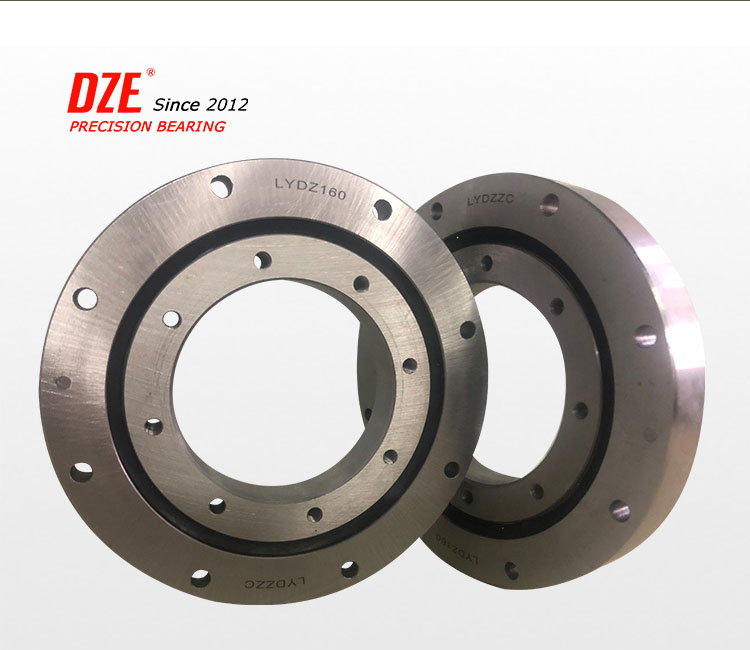

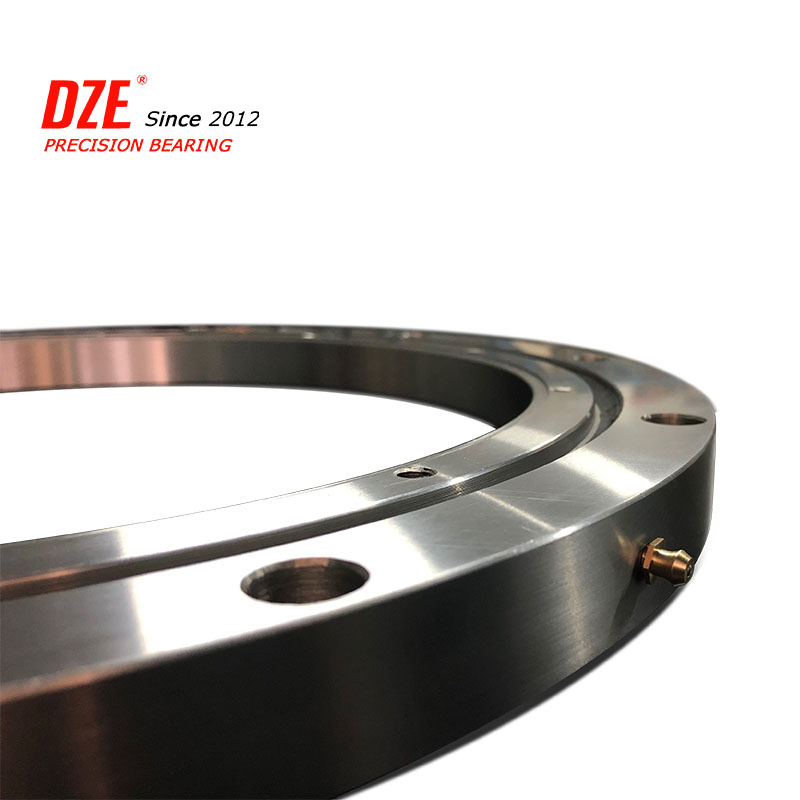

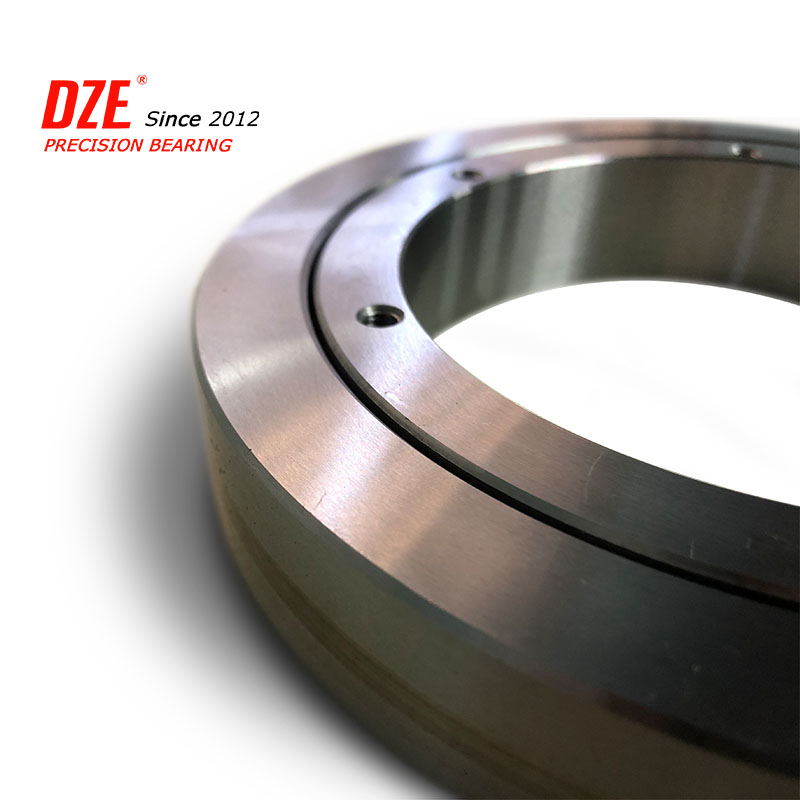

DZE provides customers with high quality slewing ring in various sizes for a wide range of applications. Sizes range from 1.5 inches (50 mm) to 8 feet (3 meters) outside diameter. Applications Slewing rings are available with ball bearings,Cross roller bearing, external teeth on the outer ring, internal teeth on the inner ring, or without teeth.
Drive pinions and hydraulic motors can be meshed with the appropriate slewing ring as required. Single and double row slewing rings are available to accommodate different loading applications. For non-market standard rings, our team of engineers work with customers to provide custom slewing rings based on the required performance.

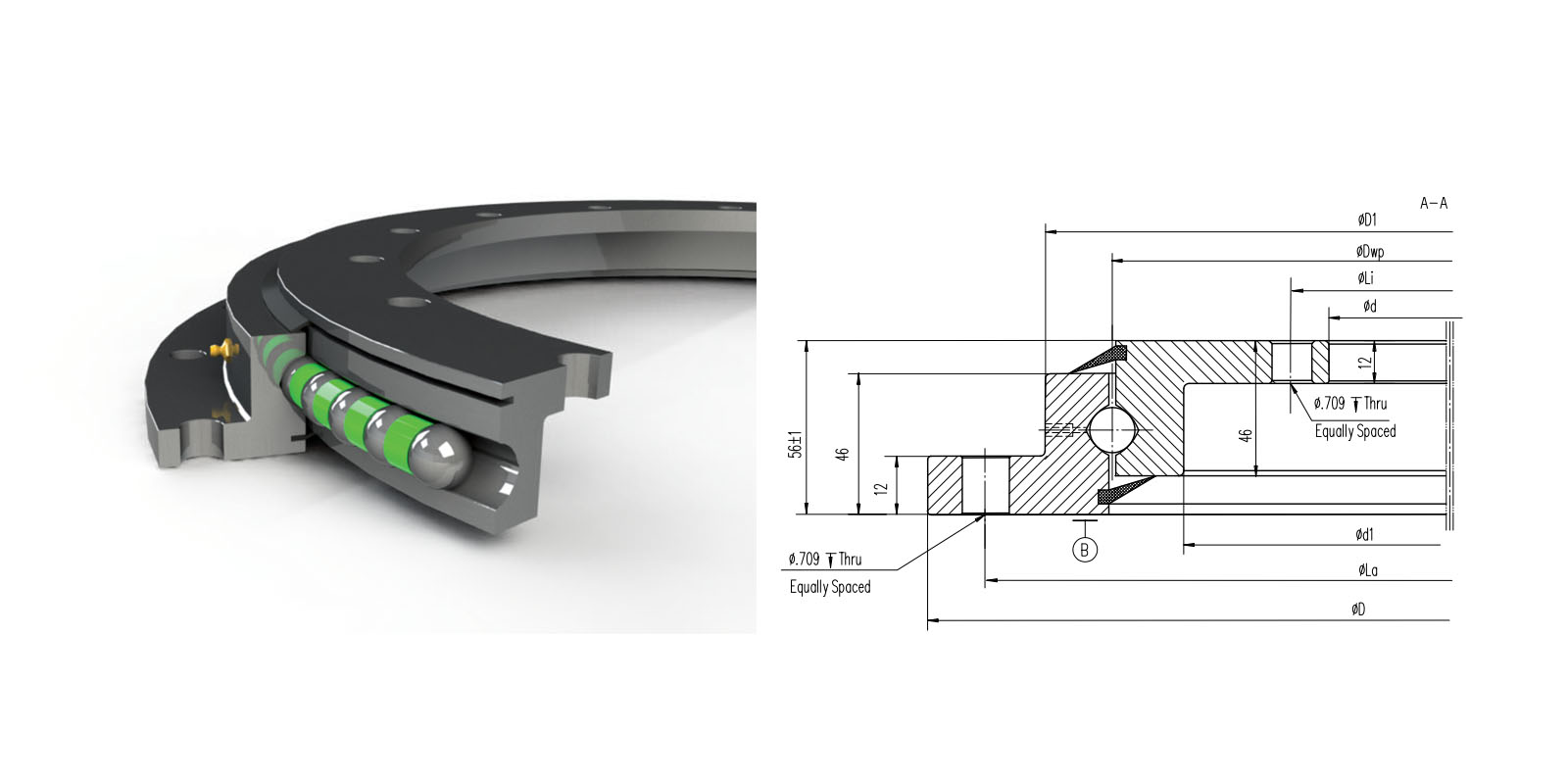

Part Number | Outline Dimensions & Weight | Mounting Holes | Moment Rating | |||||||||
Outer Ring | Inner Ring | |||||||||||
D | d | D1 | Dwp | d1 | G (KG) | Lo | no | Li | ni | Ca (KN) | ||
LYDZ 20 0311-L | 418 | 204 | 353 | 311 | 269 | 19 | 390 | 8 | 232 | 12 | 140 | |
LYDZ 20 0414-L | 518 | 304 | 456 | 414 | 372 | 23.8 | 490 | 8 | 332 | 12 | 156 | |
LYDZ 20 0544-L | 648 | 434 | 586 | 544 | 502 | 31.5 | 620 | 10 | 462 | 14 | 174 | |
LYDZ 20 0644-L | 748 | 534 | 686 | 644 | 602 | 36.5 | 720 | 12 | 562 | 16 | 185 | |
LYDZ 20 0744-L | 848 | 634 | 786 | 744 | 702 | 42.5 | 820 | 12 | 662 | 16 | 195 | |
LYDZ 20 0844-L | 948 | 734 | 886 | 844 | 802 | 52 | 920 | 14 | 762 | 18 | 205 | |
LYDZ 20 0944-L | 1048 | 834 | 986 | 944 | 902 | 58 | 1020 | 16 | 862 | 20 | 214 | |
LYDZ 20 1094-L | 1198 | 984 | 1136 | 1094 | 1052 | 68 | 1170 | 16 | 1012 | 20 | 225 | |
Tolerances | 0 | .040 | Ref. | Ref. | Ref. | 0.50 |
|
|
|
|
|
|
-0.50 | 0 |
|
|
|
|
| ||||||

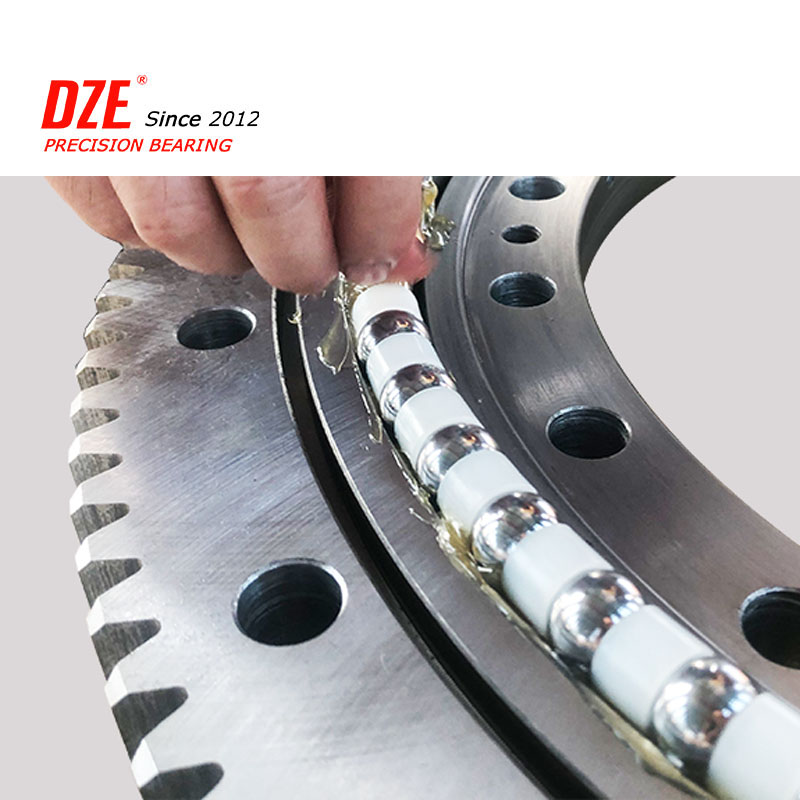

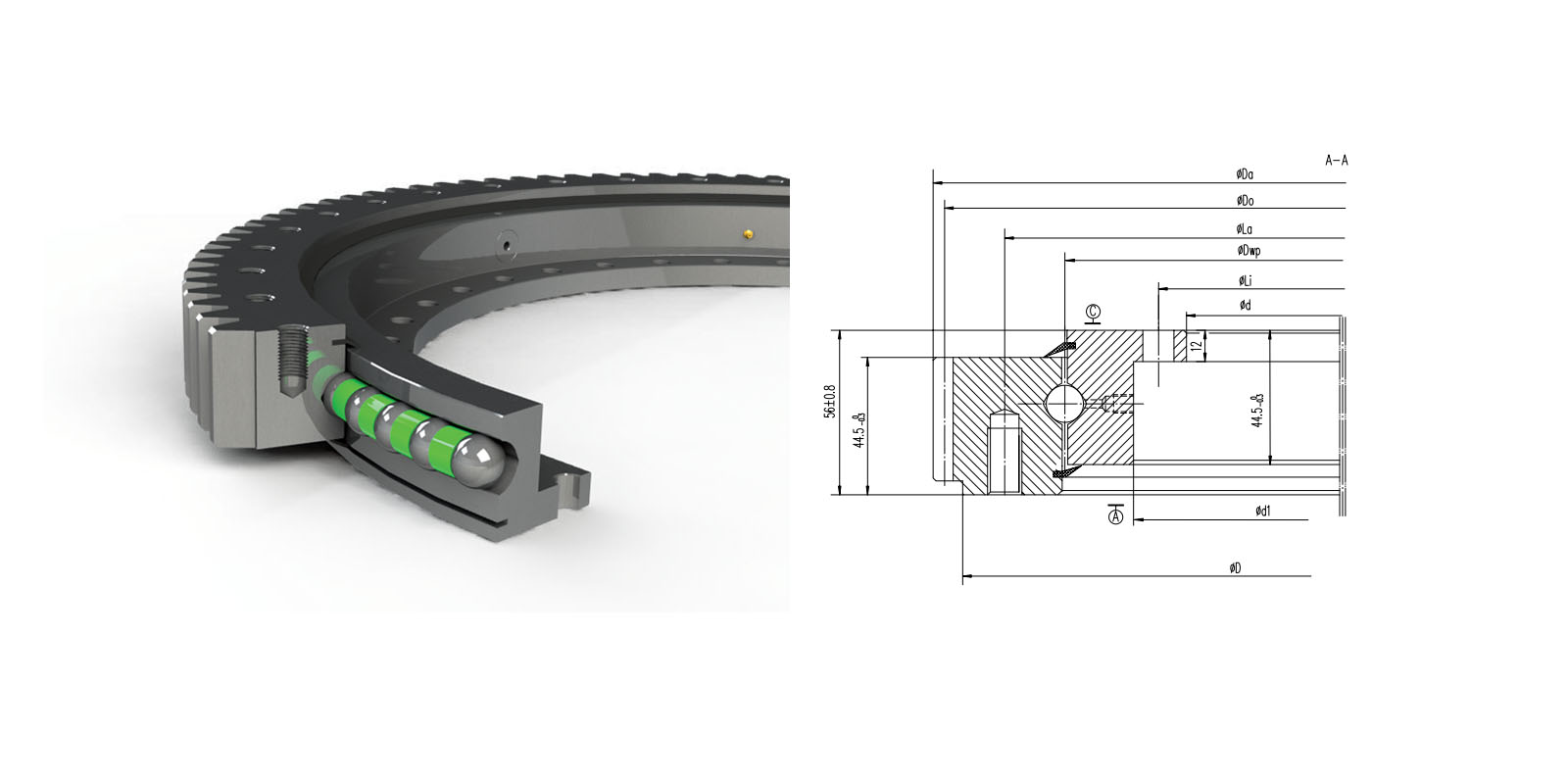

Bearing Model | Outline Dimensions & Weight | Mounting Holes | Moment Rating | Gear Data | |||||||||||||
Outer Ring | Inner Ring | ||||||||||||||||
Da | D | Dwp | d | d1 | Brand | G (KG) | La | no | Li | ni | Ca(KN) | Tooth Form | Do | M | Z | Fz(lbs) | |
LYDZ 01-314-L | 403.5 | - | 314 | 204 | 269 | DZE | 23 | 355 | 10 | 232 | 12 | 140 | FS | 395 | 5 | 79 | 5,260 |
LYDZ 01-414-L | 503.3 | 480 | 414 | 304 | 372 | DZE | 31 | 455 | 10 | 332 | 12 | 156 | FS | 495 | 5 | 99 | 5,650 |
LYDZ 01-544-L | 640.3 | - | 544 | 434 | 502 | DZE | 42.5 | 585 | 14 | 462 | 14 | 175 | FS | 630 | 6 | 105 | 5,700 |
LYDZ 01-644-L | 742.3 | - | 644 | 534 | 602 | DZE | 49.5 | 685 | 16 | 562 | 16 | 185 | FS | 732 | 6 | 122 | 5,740 |
LYDZ 01-744-L | 838.1 | - | 744 | 634 | 702 | DZE | 55.5 | 785 | 18 | 662 | 16 | 195 | FS | 828 | 6 | 138 | 7,580 |
LYDZ 01-844-L | 950.1 | - | 844 | 734 | 802 | DZE | 66.5 | 885 | 18 | 762 | 18 | 205 | FS | 936 | 8 | 117 | 7,620 |
LYDZ 01-944-L | 1046.1 | - | 944 | 834 | 902 | DZE | 72.5 | 985 | 20 | 862 | 20 | 215 | FS | 1032 | 8 | 129 | 7,620 |
LYDZ 01-1094-L | 1198.1 | - | 1094 | 984 | 1052 | DZE | 84.5 | 1135 | 22 | 1012 | 20 | 225 | FS | 1184 | 8 | 148 | 7,680 |

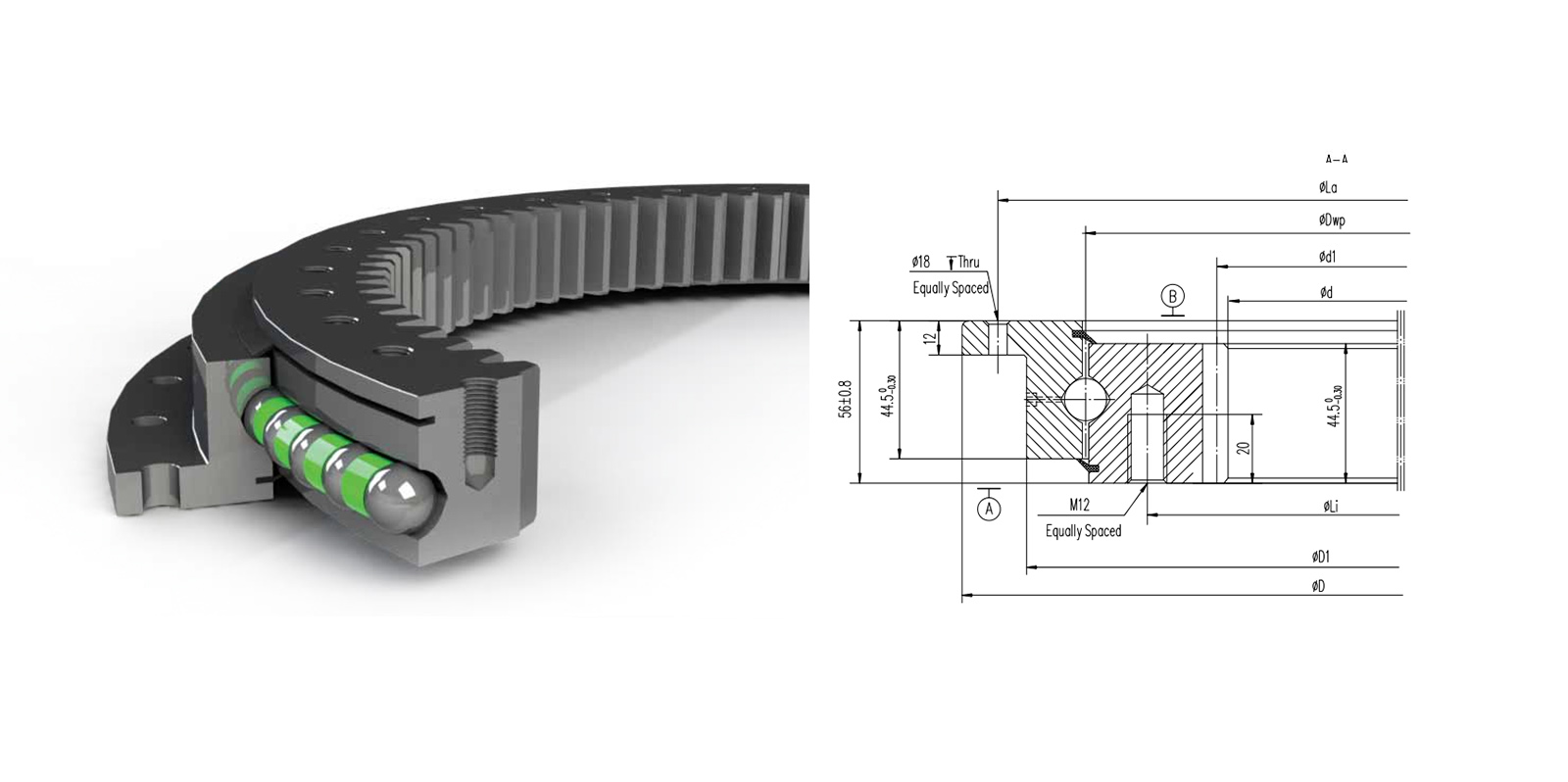

Bearing Model | Outline Dimensions & Weight | Mounting Holes | Moment Rating | Gear Data | |||||||||||||
Outer Ring | Inner Ring | ||||||||||||||||
D | D1 | Dwp | d | d1 | Brand | G (KG) | La | no | Li | ni | Ca(KN) | Tooth Form | Do | M | Z | Fz(lbs) | |
LYDZ 03-314-L | 418 | 353 | 314 | 225 |
| DZE | 21 | 390 | 8 | 275 | 12 | 140 | FS | 235 | 5 | 47 | 5,560 |
LYDZ 03-414-L | 518 | 456 | 414 | 3254 |
| DZE | 28 | 490 | 8 | 375 | 12 | 156 | FS | 335 | 5 | 67 | 5,650 |
LYDZ 03-544-L | 648 | 586 | 544 | 444 |
| DZE | 39 | 620 | 10 | 505 | 16 | 175 | FS | 456 | 6 | 76 | 5,700 |
LYDZ 03-644-L | 748 | 686 | 644 | 546 |
| DZE | 46 | 720 | 12 | 605 | 18 | 185 | FS | 558 | 6 | 93 | 5,740 |
LYDZ 03-744-L | 848 | 786 | 744 | 648 |
| DZE | 52 | 820 | 12 | 705 | 20 | 195 | FS | 660 | 6 | 110 | 7,580 |
LYDZ 03-844-L | 948 | 886 | 844 | 736 |
| DZE | 62 | 920 | 14 | 805 | 20 | 205 | FS | 752 | 8 | 94 | 7,620 |
LYDZ 03-944-L | 1048 | 986 | 944 | 840 |
| DZE | 68 | 1020 | 16 | 905 | 22 | 215 | FS | 856 | 8 | 107 | 7,680 |
LYDZ 03-1094-L | 1198 | 1136 | 1094 | 984 |
| DZE | 82 | 1170 | 16 | 1055 | 24 | 225 | FS | 1000 | 8 | 125 | 7,980 |
