Everyone knows that during the use of slewing ring, well-maintained slwing ring have a long life, so most people have such a question, how should they be maintained? The following editor will give you a detailed interpretation of the relevant content of slewing bearing maintenance.
Slewing bearing (slewing ring) maintenance and care:
There is a common misunderstanding among customers about the maintenance of slewing bearing. They think that the lubricating oil of the slewing bearing has the same lubrication cycle as the big and small arms, and should be applied every day. In fact, this action has the opposite effect. If the lubrication cycle is too short, there will be too much lubricating oil in the slewing ring, which will break the dust ring and leak out. When there is leakage, impurities will also enter the slewing ring, thus damaging the normal operation of the slewing bearing. The general lubrication interval of the slewing bearing is about every 250 hours. Apply butter to the upper and lower parts at the same time, and rotate the machine while applying. Apply a full gun of lubricating oil every 15°. In different applications, the lubrication cycle can be appropriately adjusted according to your work intensity. Generally, lubrication once a week is sufficient.
As a precision bearing supplier and bearing manufacturers with more than ten years of experience, DZE has rich experience in bearing maintenance.
Lubrication of the swing motor:
The maintenance period of the lubricating oil of the swing motor is 1000 hours. In daily operation, we need to observe the amount of the swing lubricating oil from the dipstick. In some cases, we will find abnormal loss of lubricating oil. We need to open the large gear ring window to check whether the lubricating oil leaks into the large gear ring cavity through the sealing ring. In addition to the above maintenance methods, we also need to regularly check whether the gear ring bolts are loose and whether the slewing bearing dust ring is damaged. Some fine cracks on the outside will be covered by mud. If these cracks are not discovered in time, it may cause the turntable to crack, or even cause accidents.
Precision bearing supplier size table
Luoyang LYDZ Bearing produces and designs precision slewing ring. slewing ring size table determines the key factors for designers to select; below we list some precision slewing ring size tables for your reference:

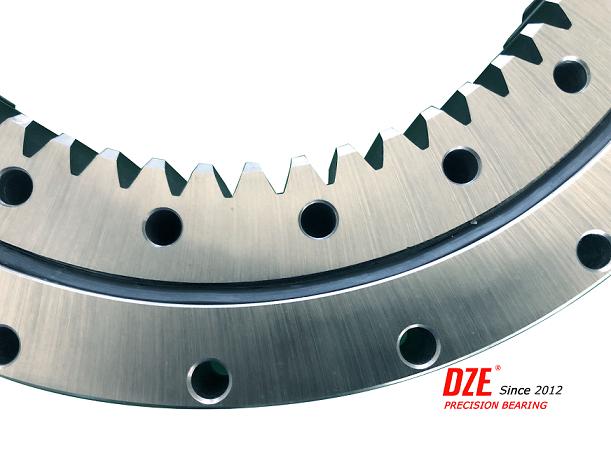

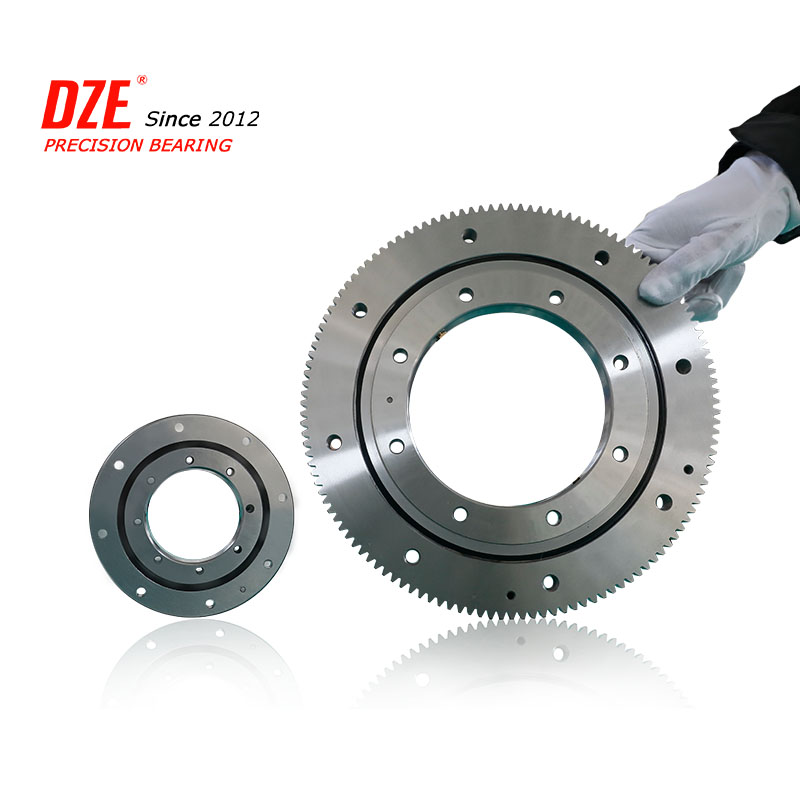

External gear precision slewing bearing model:
XSA140414 slewing ring; size specifications: inner diameter size 342 mm; outer diameter size: 403.3 mm; height size: 56 mm;
01-0289-06 slewing ring: size specifications: inner diameter size 210 mm; outer diameter size: 379 mm; height size: 45 mm;
MTE-145 T slewing ring: Dimensions: inner diameter 145 mm; outer diameter: 312 mm; height: 50 mm;
011.10.100 slewing ring dimensions: inner diameter 65 mm; outer diameter: 144 mm; height: 22 mm;
RKS.061.20.0414; dimensions: inner diameter 342 mm; outer diameter: 403.3 mm; height: 56 mm;
VLA200544 flange structure dimensions: inner diameter Size: 434 mm; outer diameter: 640.3 mm; height: 56 mm;
ROLLIX precision turntable bearing size: 31-0741-00, inner diameter: 672 mm; outer diameter: 838.1 mm; height: 56 mm;
Gearless precision turntable bearing size parameters:
MTO-065: size specifications: inner diameter: 65 mm; outer diameter: 135 mm; height: 22 mm;
ROLLIX X precision turntable bearing model 03-0818-07 size specifications: inner diameter 125 mm; outer diameter: 234 mm; height: 35 mm;
VU140179 gearless precision turntable bearing size parameters: inner diameter 125 mm; outer diameter: 234 mm; height: 35 mm;
VSU200414 gearless precision turntable bearing size parameters: inner diameter 342 mm; outer diameter: 486 mm; height: 56 mm;
For a precision bearing supplier, which one does it well, which one provides quality assurance and good after-sales service? Luoyang DZE is one of the few precision bearing supplier. Since its establishment in 2012, it has made great achievements in more than 10 years of development. It has done a good job in the manufacturing and design of precision bearing supplier , slewing bearing, Bearing manufacturers and precision non-standard bearings.
